Exothermic Breaching Support System

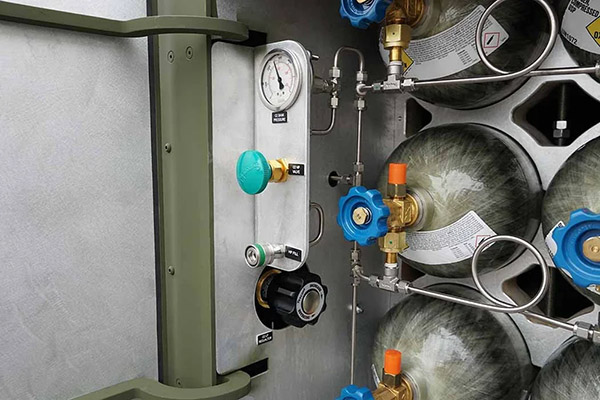

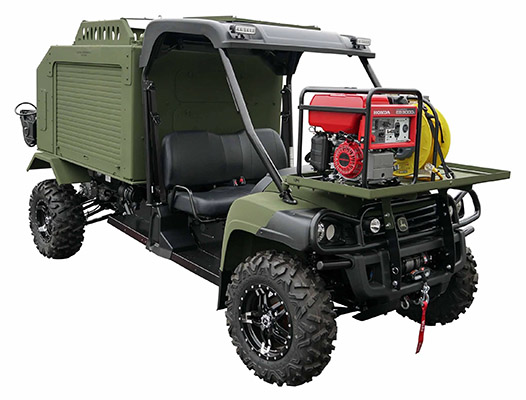

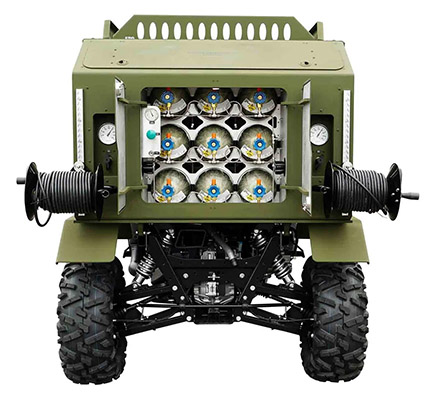

A transportable platform for sustained exothermic breaching and on‑site O₂ refills, built on a modified John Deere 825 Diesel XUV (854 cc). Open‑cab design; reinforced enclosure and roof; high‑output lighting; winch; ~680 kg towing capacity. Dual panels at rear provide access to a 9‑cylinder HP O₂ bank with HP fill port. Two adjustable regulators support two simultaneous cutting lines with QD panels and dual LP hose reels (≈15.24 m each).

Features

On‑board O₂ storage cylinders; output regulators; LP breaching reels; tool storage; generator.

Key Specifications

• Chassis: John Deere 825 Diesel XUV (854 cc)

• Towing: ≈680 kg

• Lines: Two concurrent cutting lines (adjustable regs, QD panels)

• LP hose reels: ≈15.24 m each (50 ft converted).

FAQs

Can Exothermic Breaching Support System refill portable bottles?

Yes, HP fill port and bank enable refills.

Two cutters at once?

Yes, independent regulators/lines.

Compliance

Vehicle modifications and oxygen handling must meet applicable standards; J3Seven can advise on Australian WHS and road‑use implications.
