AirJam Mobile Breathing Air Storage Bank System

The MBASBS is a large‑volume cascade bank that sustains breathing‑air refill operations in the field. It combines air‑storage cylinders and refill controls on one platform, with user‑friendly corner panels for monitoring and fills. It can also run pneumatic tools, lift bags and other air systems, and it’s designed for long‑duration, limited‑access and austere environments. It can operate stand‑alone or be paired with the AirJam Mobile Air Refill Station.

Why teams choose MBASBS

• Duration: High storage volume for extended operations.
• Flexible deployment: Works in limited‑access and austere sites.
• Stand‑alone or paired with AirJam for full refill capability.
• Rugged build: Aluminium, CARC‑coated reinforced enclosure.

Key specifications

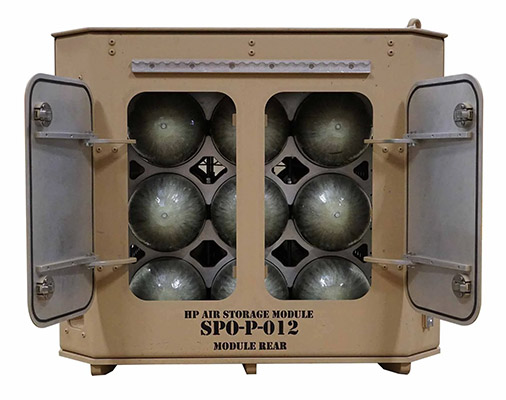

• Storage capacity @ 448 bar (6,500 psi): 9 cylinders × 11,625 L = 104,628 L total (site figure).

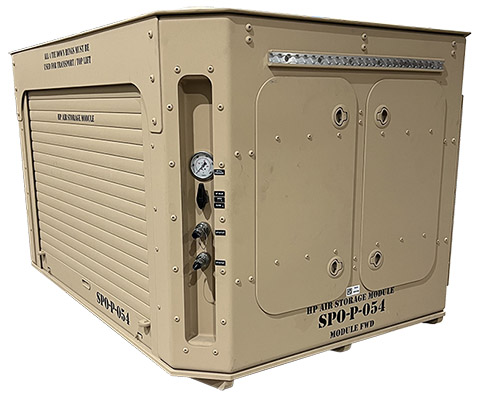

• Panels/ports: Two corner instrument/control panels with storage/fill gauges and 2 × HP QF4 fill ports.
• Dimensions (L × W × H): 152.4 × 109.2 × 96.5 cm.
• Options: HP air regulation control; ruggedised trailer platform.

Typical use cases

• Prolonged SCBA support at incidents and training blocks
• Tool‑heavy tasks (lift bags, pneumatic tools) alongside refilling
