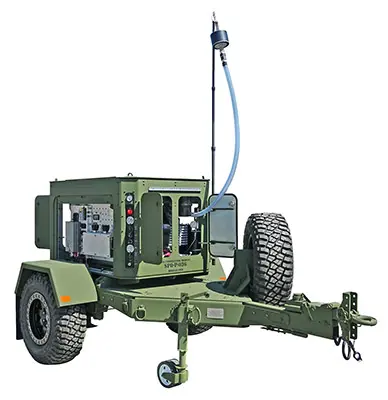

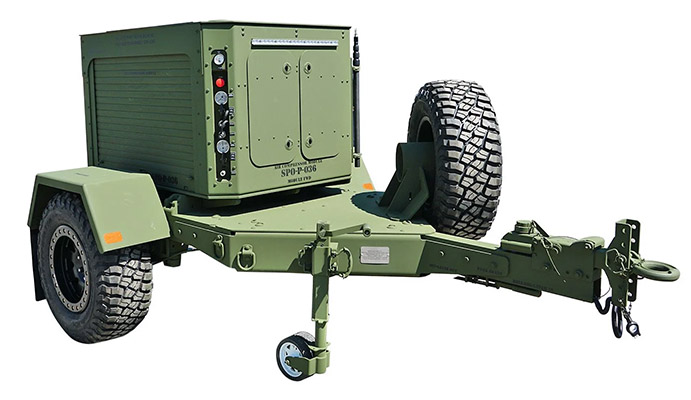

AirJam System (Air)

AirJam is a self‑contained, mobile platform built to sustain on‑scene air refill operations. It integrates a dive‑rated compressor, onboard air‑storage cylinders, and refill controls into one easy‑to‑operate system. Beyond SCBA refilling, AirJam can run pneumatic tools, lift bags and other air‑driven equipment, with user‑friendly control panels to monitor system status.

Why teams choose AirJam

• Built for endurance: supports longer‑duration operations in limited‑access and austere locations.
• All‑in‑one control: aluminium‑reinforced enclosure with corner instrument/control panels for safe, efficient refilling.
• Air beyond refills: runs pneumatic tools and lift bags in addition to SCBA cylinders.
• Mission‑ready mobility: caster system for floor transport and an optional ruggedised trailer platform.

Key specifications

• Compressor: 26.4 SCFM (≈ 748 L/min) SCBA‑rated, with auto‑cascade.
• Prime mover: 25 HP (≈ 18.6 kW) diesel; ≈ 19 L fuel cell; 2 × 12 V batteries and battery selector switch; DC→AC inverter for charging electronics.
• Storage bank: 3 cylinders, each ≈ 12,771 L gas capacity; total ≈ 38,314 L (at ≈ 414 bar working pressure).
• Fill interfaces: 2 × high‑pressure FD‑17 fill ports and 1 × low‑pressure fill port on the panels; E‑stop, fuel gauge, storage‑pressure and fill‑pressure gauges provided.
• Lighting: high, low, red and IR task lighting for night or light‑disciplined work.
• Structure: aluminium‑reinforced, enclosed system for durability.

(All figures converted to metric; airflow shown as L/min; pressure expressed in bar; capacities as litres of gas as specified on the SPO page.)

Typical use cases

• SCBA cylinder refilling during prolonged incidents or training blocks
• Remote sites where shore‑power and fixed compressors aren’t available
• Heavy air‑tool use and lift‑bag operations alongside refilling

Options & integrations

• Ruggedised trailer platform for towable deployment
• Pair with SPO storage banks (e.g., TVASS) when additional on‑scene volume is required.

FAQs

Is AirJam only for refilling SCBA?
No, while it’s designed for sustained air refills, it can also power pneumatic tools and lift bags as part of the same system.

What makes it suitable for field use?
The aluminium‑reinforced enclosure, redundant batteries, E‑stop, comprehensive gauging, and mission lighting support safe, continuous operations in difficult conditions.
