Portable GC/MS Chemical Identification System

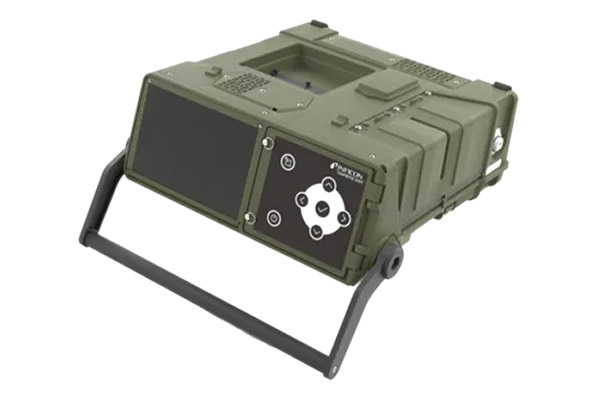

HAPSITE CDT is a field‑deployable GC/MS that gives defence, law‑enforcement and hazardous‑materials teams laboratory‑quality identification in minutes. It is engineered to detect and quantify narcotics (incl. difficult fentanyl derivatives), Chemical Warfare Agents (CWAs), Fourth‑Generation/A‑series agents (FGAs), explosives, VOCs, TICs/TIMs and heavier SVOCs on‑scene so commanders can make defensible risk decisions fast. A modern, guided interface and cartridge‑based sampling make operation and evidence handling efficient—even for new users.

Why teams choose HAPSITE CDT

• Trace‑level sensitivity with an expanded mass range suited to narcotics and FGAs.
• Remote Sample Collector (1.5 kg) enables portable collection at multiple points, then central analysis—reducing what operators carry into the hot zone.
• Intuitive software designed for minimal training; reproducible, quantifiable data for evidence and reporting.

Key specifications

• Dimensions (analytical module): 51.3 × 50.4 × 20.0 cm; mass: 19.2 kg.
• Remote Sample Collector: 1.5 kg.
• Start‑up: < 15 min; battery life: ≈ 5 h (two Li‑ion batteries).
• Operating range: 0–45 °C; 5–95 % RH.
• Mass range: 10–424 amu (to 1–424 amu in SIM).
• Comms & positioning: Wi‑Fi, USB, GPS, Ethernet.
• Vacuum: NEG/ion pump, optional mechanical accessory.

Typical applications

CBRN response (incl. A‑series agents), narcotics interdiction/overdose response, explosives confirmation for EOD, environmental release investigation and industrial incident response.

Operate, maintain and train in line with your organisation’s approved procedures.
