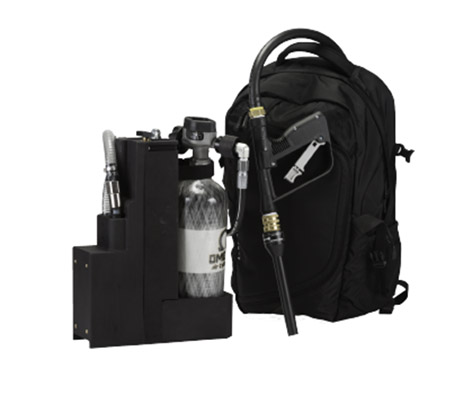

Viper Stealth Compressed-Air-Foam-System

A compact, inconspicuous CAFS for rapid fire knock‑down, vapour suppression and wet decontamination in tight or public settings. It projects foam up to ~9.1 m and supports interchangeable bladders for the right agent volume on the day.

Key features

• Discreet & compact: slim profile for covert or low‑visibility use in crowded or constrained spaces.
• Interchangeable bladders: 2 US gal standard (≈ 7.57 L); 1 gal (≈ 3.79 L) and 1.5 gal (≈ 5.69 L) available.
• Serious reach: foam projection up to ~9.1 m for quick initial attack and standoff application.
• Adjustable foam: expansion up to ~35:1 (with suitable nozzle/agent) for clinging coverage.
• Simple to operate: straightforward controls; 3 ft (~0.9 m) discharge hose with trigger‑grip handset and smooth‑bore nozzle.
• SCBA‑powered: runs from a standard breathing‑air cylinder; some Intelagard units also support a low‑pressure compressor port.

Technical specifications

• Dimensions (H × W × D): ≈ 400 × 121 × 279 mm (15 ¾ × 4 ¾ × 11 in)
• Operating pressure: ~100 psi (≈ 6.9 bar)
• Bladder capacity: 2 US gal standard (≈ 7.57 L); 1 gal and 1.5 gal options (≈ 3.79 L / 5.69 L)
• Projection distance: up to ~9.1 m (~30 ft)
• Foam expansion: up to ~35:1 (configuration‑dependent)
• Discharge hose: 0.9 m (3 ft) × 12.7 mm (½ in) internal diameter; trigger‑grip handset
• Power source: SCBA cylinder (breathing‑air)

Applications

• Rapid fire attack in public/urban environments where a low profile is preferred
• HAZMAT vapour suppression and spill edge control
• Wet decontamination for personnel/equipment
• Remote/rough‑terrain and vehicle‑borne response

What’s included

• Viper™ Stealth unit
• 0.9 m (3 ft) discharge hose with trigger‑grip handset
• Smooth‑bore nozzle
• Removable, refillable bladder (2 US gal standard configuration)

Options & accessories

• Alternative bladder sizes: 1 gal (≈ 3.79 L) and 1.5 gal (≈ 5.69 L)
• Nozzle and hose options from the Intelagard accessories range

Maintenance & support

Rinse, flush and dry the system after use; inspect hoses, seals and the bladder regularly per the operating guide. J3Seven provides selection advice, consumables and after‑sales support across Australia.

FAQs

How far will it project foam?
Up to about 9.1 m under typical conditions.

What bladder sizes are available?
2 US gal is standard; 1 gal and 1.5 gal bladders are available for smaller loads.

What’s the operating pressure?
Around 100 psi (≈ 6.9 bar) during normal operation.

What cylinder does it use?
A standard SCBA breathing‑air cylinder supplies the compressed air energy.

What are the overall dimensions?
Approximately 400 × 121 × 279 mm.
