Gamma Vehicle Radiation Portal

Drive-through portal performance, compact footprint

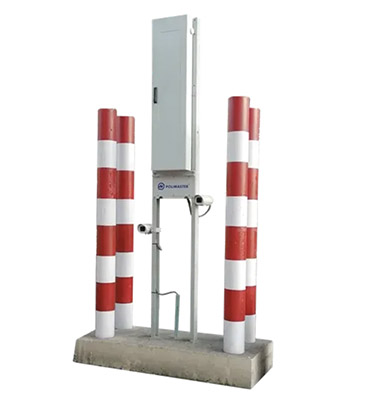

The PoliGate™ Vehicle G2 is a double-sided, gamma-only radiation portal monitor for Australian ports, borders, rail heads, and industrial gates. Two 11 L plastic scintillator detectors with lead shielding continuously screen trucks, utes, and containers as they drive through at 5–8 km/h, no stop required.

Modular hardware (lane-width options, CCTV integration, cabinet and pillar placement) and an Ethernet-connected operator workstation as your “companion app” support an end-to-end workflow from installation and tuning through to alarm review, incident export, and long-term reporting.

Why Teams Choose PoliGate™ Vehicle G2?

• Lane-ready geometry: Double-sided layout with 3 m × 2 m and 6 m × 2 m control-zone options covers standard road lanes and container gates.
• High sensitivity at speed: Two 11 L plastic scintillators detect ¹³⁷Cs down to ~65 kBq at 5 km/h and ~230 kBq at 8 km/h (background <0.1 µSv/h).
• Keep vehicles moving: No-stop design at 5–8 km/h reduces congestion and driver complaints compared to stop-and-measure checkpoints.
• Built for harsh lanes: IP65 pillars, −30 to 50 °C operation, and up to 98 % RH at 40 °C suit Australian yards, ports, and remote border crossings.
• Power resilience & central control: Wide-range AC input, >8 h internal battery, and Ethernet-connected operator software align with existing control rooms and SCADA.

What’s in the Kit?

Two PoliGate™ Vehicle G2 gamma detection blocks, electronics/control cabinet with integrated 12 V backup battery, local light and sound alarms, infrared occupancy sensors, mains power cabling, Ethernet interface, operator workstation software licence, installation guide and user manual (project-specific mounting hardware and CCTV are optional).

Speak with us to configure a PoliGate™ Vehicle G2 lane that aligns with your traffic profile, threat model, and regulatory standards.

PoliGate™ Vehicle G2 Key Specs

• Type: Double-sided, gamma-only radiation portal monitor for vehicles.
• Detectors: Plastic scintillator (PVT), ~11 L per gamma detector; 2 gamma detectors total.
• Radiation: Gamma only; energy range 20 keV – 3 MeV.
• Control zones & speeds:
  • 3 m (W) × 2 m (H) at 5 km/h
  • 6 m (W) × 2 m (H) at 8 km/h
• Typical MDAs (5 km/h, 3 m × 2 m, background <0.1 µSv/h):
  • ²⁴¹Am ~620 kBq; ¹³⁷Cs ~65 kBq; ⁶⁰Co ~40 kBq; ²³⁸U ~460 g; ²³⁵U ~32 g; ²³⁹Pu ~0.9 g.
• Typical MDAs (8 km/h, 6 m × 2 m):
  • ²⁴¹Am ~2150 kBq; ¹³⁷Cs ~230 kBq; ⁶⁰Co ~145 kBq; ²³⁸U ~1800 g; ²³⁵U ~110 g; ²³⁹Pu ~3.2 g.
• Gamma sensitivity (per detector): ~251 cps per nSv/h (²⁴¹Am); 57 cps per nSv/h (¹³⁷Cs); 27 cps per nSv/h (⁶⁰Co).
• False alarm rate: <1/1000 passages (under stated conditions).
• Power: 110 V AC (90–132 V) or 220 V AC (180–264 V), 47–63 Hz; ≤120 V·A; internal 12 V rechargeable battery with >8 h backup.
• Comms: Ethernet from control cabinet to operator PC / control system.
• Environmental: IP65; −30 to 50 °C; 84–106.7 kPa; up to 98 % RH at 40 °C.
• Weights: ~120 kg per detection block; ~20 kg control unit (typical).

Frequently Asked Questions

What radiation does PoliGate™ Vehicle G2 detect?

Vehicle G2 is a gamma-only RPM. It detects elevated gamma fields from industrial, medical, and nuclear materials; neutron detection is provided by the Vehicle G4N4 model if required.

How rugged is G2 for Australian yard and port environments?

Each detection block is IP65-rated and specified from −30 to 50 °C with high humidity tolerance, making it suitable for exposed road gates, scrap yards, ports, and industrial sites.

What’s the “companion app” for this portal?

The system connects over Ethernet to a Windows®-based operator workstation. That software provides real-time displays, configuration, event logging, and optional integration with CCTV or higher-level security systems.

What exactly comes with a Vehicle G2 system?

A standard delivery includes two gamma pillars, the electronics cabinet with backup battery, local light and sound alarms, occupancy sensors, power and network hardware, and operator software. Frames, bollards, and video systems are specified to suit each site.

Compliance note: Specifications, MDAs, and standards references are based on manufacturer documentation and may change without notice. Agencies remain responsible for verifying local regulatory acceptance, site licensing, and export-control obligations before procurement, installation, or cross-border transfer.
