Spectroscopic Personal Radiation Detector

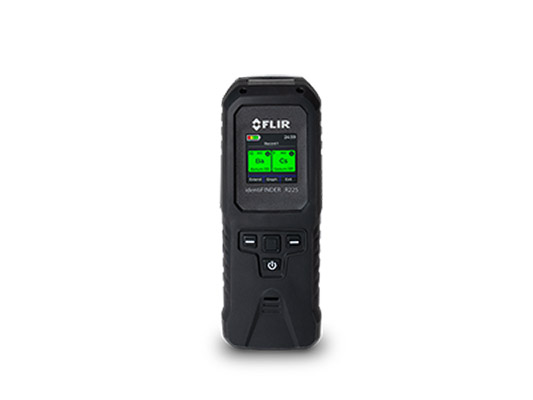

identiFINDER® R225: Stop the threat, not the team.

A pager-sized spectroscopic personal radiation detector (SPRD) for police, hazmat, customs, and security. Choose CsI(Tl) or LaBr₃(Ce), with optional neutron. Works on the belt, in vehicles, or on foot. Built-in Wi-Fi/BLE, on-board web server, and mobile app streamline the end-to-end workflow from alarm to nuclide ID to report.

Why Teams Choose identiFINDER R225?

• Faster decisions: 1024-channel spectroscopy to 3 MeV delivers on-scene IDs in seconds.
• Rugged in weather: IP67 and MIL-STD-810G (salt/fog) keep it working in rain, dust, and spray.
• Consistent UI: Classic 3-button identiFINDER controls and bright, sunlight-readable colour screen.
• Power that lasts: ≥24 h internal Li-ion plus hot-swappable CR123A backup (≥12 h).
• Standards-driven trust: Fully compliant with ANSI N42.48, N42.32, and N42.42.

identiFINDER R225 Key Specs

• Detectors (models): R225G/GN: (18 mm)³ CsI(Tl) + SiPM; R225LG/LGN: (18 mm)³ LaBr₃(Ce) + SiPM; “N” adds ZnS neutron (27×62×5 mm).
• Energy range (γ): 25 keV–3 MeV
• Spectrum: 1024 channels.
• Resolution @ 662 keV: CsI ≤7.5% FWHM; LaBr₃ ≤3.5–4% FWHM.
• Sensitivity (Cs-137): CsI 2.1 cps/µrem/h; LaBr₃ 1.94 cps/µrem/h.
• Neutron sensitivity: ≥7.5 cps/n·v (GN/LGN).
• Dose rate (ID mode):1 µrem/h–25 mrem/h (1 nSv/h–250 µSv/h).
• Measurement accuracy: ≤10 µrem/h–1 rem/h (±20%).
• Stabilisation: Sourceless gain stabilisation; real-time energy linearisation.
• Comms & app: USB-C, Wi-Fi, BLE 5.0; on-board web server; iOS/Android remote.
• Ruggedisation: IP67; MIL-STD-810G (salt/fog).
• Runtime: ≥24 h (Li-ion) + ≥12 h (CR123A hot-swap).
• Startup: <1 min cold start.
• Size/weight:7 × 2.2 × 1.9 in (145 × 56 × 49 mm); ≤0.89 lb (406 g).
• Standards: ANSI N42.48 (SPRD), N42.32 (PRD), N42.42 (data format).

What’s in the Kit?

identiFINDER R225 instrument (model as ordered), belt holster, USB-C cable, quick-start guide, documentation.

Frequently Asked Questions

What detector configurations are available?
CsI(Tl) or LaBr₃(Ce) for gamma; add ZnS for neutron (GN/LGN variants).

How rugged is the device?
Rated IP67 and tested to MIL-STD-810G (salt/fog) for wet, dusty, and maritime use.

Which devices can control or view it?
Use the on-board web server over Wi-Fi or the iOS/Android app via BLE/Wi-Fi.

Does it meet recognised standards?
Yes—ANSI N42.48 (SPRD), N42.32 (PRD), and N42.42 (data). Data outputs slot into existing workflows.

What’s included in the box?
R225 unit (as ordered), belt holster, USB-C cable, and documentation to get started.

Request a demo today—field-proven, ANSI-compliant detection you can deploy now.

Compliance note: Availability, configurations, and accessories may vary by region. Subject to local regulations and export controls for radiation detection equipment.
