System‑Compatible Gamma and X‑ray Detector

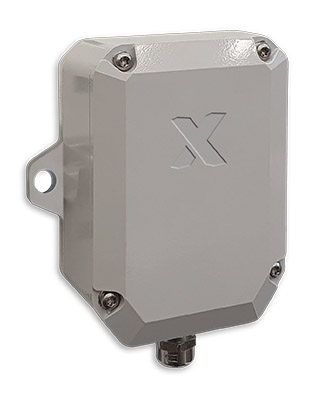

A compact, rugged gamma/X‑ray detector designed to drop into vehicles, vessels, UGV/UAVs and fixed sites, providing real‑time dose‑rate monitoring and alarms. Multiple detectors can be networked to show relative direction of increased radiation on a connected CBRN display (e.g., ChemProX‑DS or monitoring software). No consumables, IP67, and 24/7 operation.

Why teams choose it

• Easy integration: Ethernet/RS‑485/USB/PoE; 9–33 V DC power.
• Wide dynamic range: 0.01 µSv/h–10 Sv/h with fast response.
• Ruggedised: IP67, tested to MIL‑STD‑810G/461G, MIL‑DTL‑910E, IACS UR E10 / DNV‑CG‑0339.
• System UX (when paired with ChemProX‑DS): trends, alarm history, data logging, and radiation‑direction view with ≥ 2 detectors.

How it works

A Geiger‑Müller tube measures gamma/X‑ray dose rate. The unit streams readings to your CBRN HMI; alarms and logs are handled at the UI layer, and multi‑head layouts can show the direction of rising radiation.

Key specifications

• Size / mass: ≈ 155 × 120 × 50 mm, ≈ 1.0 kg
• Radiation: gamma & X‑ray; 50 keV–3 MeV (tested to 1.3 MeV)
• Dose rate: 0.01 µSv/h–10 Sv/h
• Interfaces: Ethernet, RS‑485, USB, PoE; Modbus to third‑party systems via ChemProX‑DS
• Power: 9–33 V DC or PoE
• Environment: –32 °C to +55 °C operation; 0–100 % RH; IP67; MIL/IACS tested.

Typical applications

CBRN vehicles, naval platforms, critical‑infrastructure rooms, UAV/UGV payload bays, and fixed networks requiring low‑burden radiation awareness.

FAQs

Can it run 24/7?

Yes, designed for continuous use.

Does it show dose history?

Yes, when connected to ChemProX‑DS/CBRN software.
