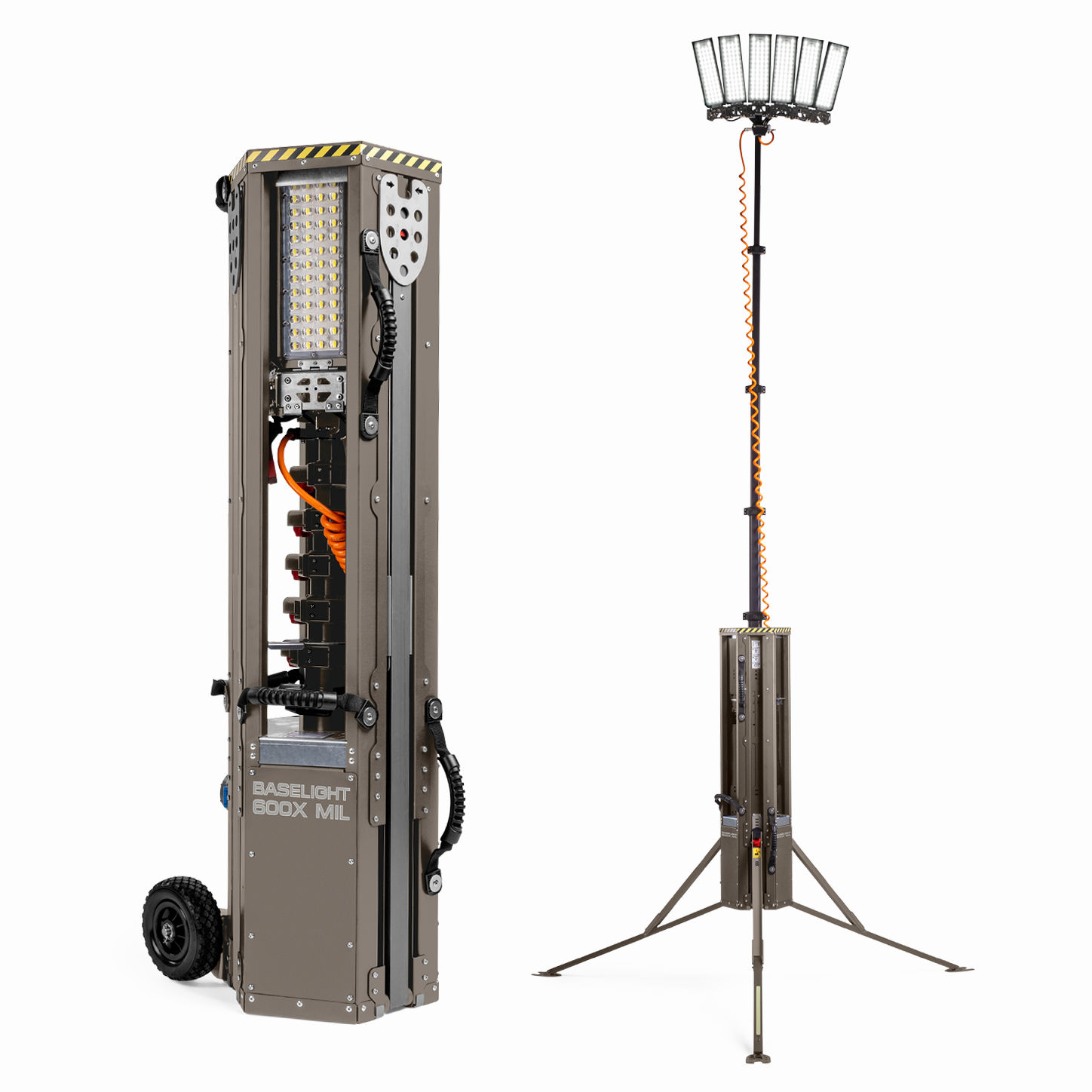

Baselight MIL Series – LED Light Towers

Baselight MIL Series – LED Light Towers

The Baselight MIL Series is a range of portable LED light towers developed for military and demanding field environments. Designed around robust, high strength construction, the range provides rapidly deployable area lighting with outputs from 45,000 to 95,000 lumens.

The series includes MIL X manual mast models and MIL MX electrically operated mast models, allowing operators to select the level of output and control that best suits the mission. In addition, the compact transport dimensions, low system weight and modular construction make the MIL Series suitable for deployment where mobility, durability and rapid setup are essential.

Key benefits

  • High output LED lighting: Above all, the range delivers from 45,000 to 95,000 lumens depending on the model.
  • Rapid deployment: In addition, MIL X models can be set up by one person in less than 60 seconds.
  • Portable design: As a result, the systems provide high lighting performance while remaining compact enough for vehicle and pallet transport.
  • MIL X and MIL MX options: Meanwhile, MIL X models use a manual mast, while MIL MX models use an electrically powered chain driven mast.
  • Wide area illumination: Depending on the model, the light towers illuminate from 4,600 to 11,300 m² at 5 lux.
  • Adjustable lighting: Furthermore, the LED fixtures support 180° or 360° beam configurations and dimming.
  • Built for harsh conditions: In addition, the systems provide IP65 protection and withstand winds up to 25 m/s.
  • Modular construction: Therefore, replaceable components can simplify servicing and repairs if damage occurs.
  • Daisy chain capability: Finally, operators can serially connect multiple units when larger lighting areas are required.

Typical applications

  • For example, Defence and military field operations.
  • In addition, temporary camps and operational areas.
  • Likewise, forward operating locations.
  • Furthermore, maintenance and logistics areas.
  • Similarly, emergency and disaster response.
  • In addition, police and fire operations.
  • Finally, temporary infrastructure and remote worksites.

Portable lighting for field operations

The Baselight MIL Series combines high lighting output with a compact deployable format. As a result, operators can establish wide area illumination without relying on conventional trailer mounted light towers.

Furthermore, the systems collapse to approximately 120 × 32 × 40 cm, making them easier to transport in vehicles or on pallets. Once deployed, the towers reach approximately 4.4 metres in height and create a wide lighting footprint.

MIL X and MIL MX mast options

The Baselight MIL Series provides both manual and electrically operated mast configurations. Therefore, users can select a MIL X model for simple manual operation or a MIL MX model for motorised control, depending on the operational requirement.

MIL X models

The 320x MIL, 420x MIL and 600x MIL use a manual mast system. As a result, the MIL X models prioritise simplicity, portability and low system weight.

MIL MX models

By comparison, the 420mx MIL and 600mx MIL use a chain driven mast powered by an electric motor. In addition, MIL MX models provide onboard mast controls and compatible smartphone connectivity. Furthermore, the MIL MX models include WiFi connectivity for compatible iOS and Android devices.

320x MIL

The Baselight 320x MIL is the most compact MIL X model in the series. It delivers 45,000 lumens while weighing only 33 kg. Therefore, it provides a highly portable lighting option for operations where transport weight and rapid deployment are important.

  • Light output: 45,000 lumens
  • Weight: 33 kg
  • Configuration: MIL X
  • Mast: Manual
  • Illuminated area at 5 lux: In addition, the unit covers approximately 4,600 m².
  • Power: 0 to 320 W
  • Beam angle: Furthermore, the lighting can operate from 180° to 360°.
  • IP rating: IP65
  • Wind resistance: In addition, the unit withstands winds up to 25 m/s.
  • Operating temperature: Finally, the published range extends from −30 °C to 45 °C.

420x MIL

The Baselight 420x MIL increases lighting performance to 65,000 lumens while retaining the MIL X manual mast configuration. As a result, it provides greater area coverage while maintaining the simplicity of manual mast operation.

  • Light output: 65,000 lumens
  • Weight: 36 kg
  • Configuration: MIL X
  • Mast: Manual
  • Illuminated area at 5 lux: In addition, the unit covers approximately 7,650 m².
  • Power: 0 to 420 W
  • Beam angle: Furthermore, the lighting can operate from 180° to 360°.
  • IP rating: IP65
  • Wind resistance: In addition, the unit withstands winds up to 25 m/s.
  • Operating temperature: Finally, the published range extends from −30 °C to 50 °C.

420mx MIL

The Baselight 420mx MIL combines 65,000 lumens of output with the MIL MX electrically operated mast configuration. Therefore, operators gain the same lighting coverage as the 420x MIL together with motorised mast control and compatible smartphone connectivity.

  • Light output: 65,000 lumens
  • Weight: 46 kg
  • Configuration: MIL MX
  • Mast: Electric
  • Illuminated area at 5 lux: In addition, the unit covers approximately 7,650 m².
  • Power: 0 to 420 W
  • Beam angle: Furthermore, the lighting can operate from 180° to 360°.
  • IP rating: IP65
  • Wind resistance: In addition, the unit withstands winds up to 25 m/s.
  • WiFi control: Additionally, compatible iOS and Android devices can support control functions.
  • Operating temperature: Finally, the published range extends from −30 °C to 50 °C.

600x MIL

The Baselight 600x MIL delivers the highest lighting output available in the MIL X configuration. With 95,000 lumens and coverage of up to 11,300 m² at 5 lux, it provides high capacity area lighting while maintaining a portable 38 kg configuration.

  • Light output: 95,000 lumens
  • Weight: 38 kg
  • Configuration: MIL X
  • Mast: Manual
  • Illuminated area at 5 lux: In addition, the unit covers approximately 11,300 m².
  • Power: 0 to 670 W
  • Beam angle: Furthermore, the lighting can operate from 180° to 360°.
  • IP rating: IP65
  • Wind resistance: In addition, the unit withstands winds up to 25 m/s.
  • Operating temperature: Finally, the published range extends from −30 °C to 50 °C.

600mx MIL

The Baselight 600mx MIL combines the highest lighting output in the range with the MIL MX electrically operated mast configuration. It produces 95,000 lumens and illuminates up to 11,300 m² at 5 lux. In addition, WiFi connectivity enables compatible smartphone control.

  • Light output: 95,000 lumens
  • Weight: 48 kg
  • Configuration: MIL MX
  • Mast: Electric
  • Illuminated area at 5 lux: In addition, the unit covers approximately 11,300 m².
  • Power: 670 W
  • Beam angle: Furthermore, the lighting can operate from 180° to 360°.
  • IP rating: IP65
  • Wind resistance: In addition, the unit withstands winds up to 25 m/s.
  • WiFi control: Additionally, compatible iOS and Android devices can support control functions.
  • Operating temperature: Finally, the published range extends from −30 °C to 50 °C.

Technical highlights

  • Product range: Baselight MIL Series
  • Models: 320x MIL, 420x MIL, 420mx MIL, 600x MIL and 600mx MIL
  • Configurations: MIL X manual mast and MIL MX electrically operated mast
  • Light output: Overall, the range delivers from 45,000 to 95,000 lumens.
  • Area coverage: In addition, models cover approximately 4,600 to 11,300 m² at 5 lux.
  • Mast options: MIL X manual or MIL MX electric
  • Beam angle: Furthermore, the range supports 180° to 360° lighting configurations.
  • Voltage range: 100 to 240 V
  • IP rating: IP65
  • Wind resistance: In addition, the systems withstand winds up to 25 m/s.
  • Dimmable: Yes
  • Daisy chain: Yes
  • LED panels: 6
  • Collapsed dimensions: Approximately 120 × 32 × 40 cm
  • Deployed dimensions: Finally, the units extend to approximately 4.4 × 2.2 × 2.2 m.

Why choose the Baselight MIL Series

The Baselight MIL Series provides portable area lighting across several output and control configurations. Therefore, operators can select a lighter MIL X manual system or a MIL MX motorised system while retaining the same rugged field oriented platform.

  • Rapid deployment: Above all, MIL X units can be deployed by one person in less than 60 seconds.
  • Scalable lighting output: In addition, operators can choose from 45,000, 65,000 or 95,000 lumens depending on the requirement.
  • Portable construction: As a result, the units combine high output with a compact format for field transport.
  • Flexible mast options: Operators can choose MIL X manual operation or MIL MX motorised operation depending on the application.
  • Flexible control: Furthermore, MIL MX models provide electrical mast operation and compatible smartphone connectivity.
  • Field durability: In addition, IP65 protection and wind resistance up to 25 m/s support demanding operating environments.
  • Serviceable design: Finally, modular components allow damaged parts to be replaced without replacing the complete system.

Overall, the Baselight MIL Series provides rapidly deployable, high output area lighting for Defence and demanding field operations. Talk to J3Seven about selecting the right Baselight MIL X or MIL MX light tower for your operational requirements.
