Baselight X Series – LED Light Towers

The Baselight X Series is a range of portable LED lighting systems designed around simplicity, mobility and high output illumination. The range combines lightweight construction with durable materials and straightforward operation, making it suitable for indoor and outdoor applications across construction, infrastructure, emergency response and other demanding environments.

Depending on the model, the X Series delivers up to 95,000 lumens and can illuminate areas of up to 11,300 m² at 5 lux. In addition, the range includes compact tripod lighting, manual mast light towers and an integrated battery powered option, allowing operators to select the configuration that best suits the application.

Key benefits

• Portable area lighting: Above all, the X Series combines high lighting output with compact and lightweight configurations.
• High output LED lighting: In addition, models deliver up to 95,000 lumens depending on the configuration.
• Wide area coverage: As a result, selected models can illuminate up to 11,300 m² at 5 lux.
• Simple operation: Furthermore, the main X Series light towers use straightforward manual mast systems without complex motorised controls.
• Flexible configurations: Meanwhile, the 220x provides a compact tripod mounted option, while the 320x Battery provides cable free operation.
• Adjustable lighting: In addition, LED fixtures support dimming and 180° to 360° lighting configurations.
• Built for demanding environments: Furthermore, selected light towers provide IP65 protection and wind resistance up to 25 m/s.
• Easy servicing: As a result, modular construction allows damaged components such as legs and fixtures to be replaced individually.
• Daisy chain capability: Finally, compatible models can be serially connected when operators require multiple lighting units.

Typical applications

• For example, construction and infrastructure projects.
• In addition, disaster and rescue operations.
• Likewise, police and fire response.
• Furthermore, sport and event lighting.
• Similarly, temporary and remote worksites.
• Finally, operations requiring portable lighting that can move easily between locations.

Portable lighting for demanding environments

The Baselight X Series focuses on portability without sacrificing lighting performance. Therefore, the main light tower models remain compact enough for transport in vehicles or on pallets while providing large area illumination once deployed.

In addition, the manual mast configuration of the 320x, 420x and 600x keeps operation simple. As a result, operators can establish area lighting without the additional electrical mast systems used in the MX Series.

Flexible lighting configurations

The X Series covers several different operational requirements. For example, the 220x provides a lightweight LED lighting system that attaches to a suitable tripod, while the 320x, 420x and 600x provide complete portable light tower configurations.

Meanwhile, the 320x Battery adds integrated energy storage for locations where operators require lighting without a continuous connection to mains power. Therefore, the X Series can support applications ranging from highly portable tripod lighting through to higher output area illumination.

220x

The Baselight 220x is the most compact lighting system within the X Series. Instead of using an integrated mast, the unit attaches to a suitable tripod and combines the LED head, control system and power supply within a strong aluminium enclosure.

Despite weighing only 12 kg, the 220x delivers 45,000 lumens and illuminates approximately 4,600 m² at 5 lux. As a result, it provides a highly portable option where operators already use tripod based equipment or require a compact lighting system for rapid transport.

• Light output: 45,000 lumens
• Weight: 12 kg
• Mounting: Tripod, not included
• Illuminated area at 5 lux: In addition, the system covers approximately 4,600 m².
• Power: 0 to 320 W
• Voltage range: 110 to 230 V
• Beam angle: Furthermore, the LED head supports 180° to 360° lighting.
• Dimmable: Yes
• IP rating: IP65
• Daisy chain: Yes
• LED panels: 6
• Operating temperature: Finally, the published range extends from −30 °C to 50 °C.

320x

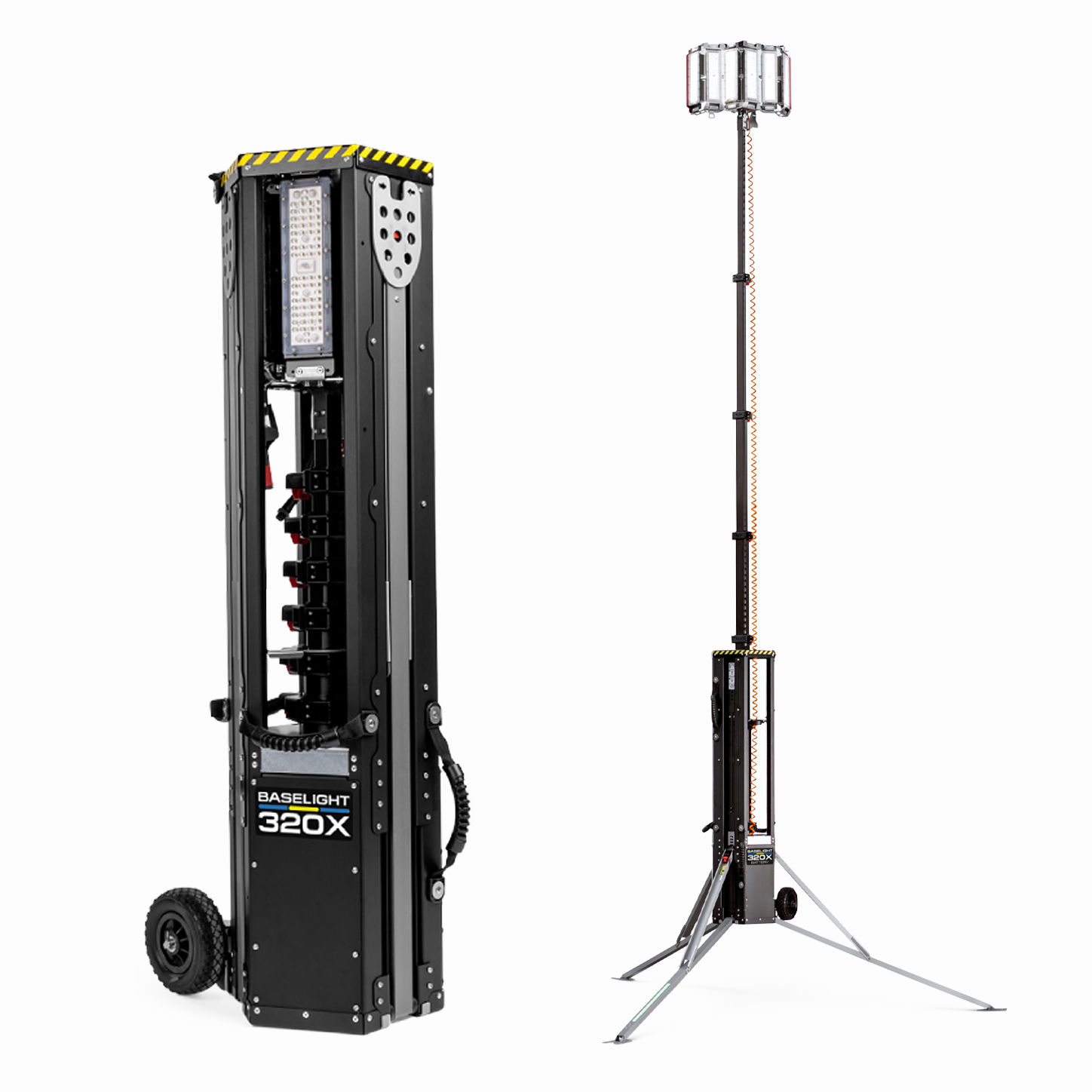

The Baselight 320x combines a manual mast with 45,000 lumens of LED output. At only 33 kg, it provides a compact portable light tower that can illuminate approximately 4,600 m² at 5 lux.

In addition, the LED fixture can operate in 180° or 360° configurations and can tilt upwards or downwards. Furthermore, the modular construction supports straightforward servicing if components become damaged.

• Light output: 45,000 lumens
• Weight: 33 kg
• Mast: Manual
• Illuminated area at 5 lux: In addition, the unit covers approximately 4,600 m².
• Power: 0 to 320 W
• Voltage range: 100 to 240 V
• Beam angle: Furthermore, the lighting can operate from 180° to 360°.
• Dimmable: Yes
• IP rating: IP65
• Wind resistance: In addition, the unit withstands winds up to 25 m/s.
• Daisy chain: Yes
• Operating temperature: Finally, the published range extends from −30 °C to 45 °C.

420x

The Baselight 420x increases output to 65,000 lumens while maintaining a lightweight 36 kg configuration. As a result, the unit can illuminate approximately 7,650 m² at 5 lux while remaining easy to move around a worksite, lift into a vehicle or transport on a pallet.

Furthermore, the manual mast keeps deployment straightforward, while the adjustable LED fixture provides flexible area coverage. In addition, its modular construction supports replacement of individual components if required.

• Light output: 65,000 lumens
• Weight: 36 kg
• Mast: Manual
• Illuminated area at 5 lux: In addition, the unit covers approximately 7,650 m².
• Power: 0 to 420 W
• Voltage range: 100 to 240 V
• Beam angle: Furthermore, the lighting can operate from 180° to 360°.
• Dimmable: Yes
• IP rating: IP65
• Wind resistance: In addition, the unit withstands winds up to 25 m/s.
• Daisy chain: Yes
• Operating temperature: Finally, the published range extends from −30 °C to 50 °C.

600x

The Baselight 600x provides the highest lighting output of the standard manual mast models. With 95,000 lumens, the system illuminates approximately 11,300 m² at 5 lux while weighing only 38 kg.

Therefore, the 600x provides significantly greater lighting coverage without moving to a motorised mast platform. Furthermore, it retains the same portable format, manual operation, adjustable lighting and modular construction found across the main X Series light towers.

• Light output: 95,000 lumens
• Weight: 38 kg
• Mast: Manual
• Illuminated area at 5 lux: In addition, the unit covers approximately 11,300 m².
• Power: 0 to 670 W
• Voltage range: 100 to 240 V
• Beam angle: Furthermore, the lighting can operate from 180° to 360°.
• Dimmable: Yes
• IP rating: IP65
• Wind resistance: In addition, the unit withstands winds up to 25 m/s.
• Daisy chain: Yes
• Operating temperature: Finally, the published range extends from −30 °C to 50 °C.

320x Battery

The Baselight 320x Battery combines the portable X Series platform with an integrated 936 Wh lithium battery. Therefore, operators can establish high output area lighting in locations where a continuous mains power connection is unavailable or inconvenient.

The system delivers up to 45,000 lumens and illuminates approximately 4,600 m² at 5 lux. In addition, the integrated battery removes the need for a power cable during operation, while WiFi connectivity provides compatible smartphone control.

• Light output: 45,000 lumens
• Weight: 41 kg
• Mast: Manual
• Integrated battery: 936 Wh lithium battery
• Illuminated area at 5 lux: In addition, the unit covers approximately 4,600 m².
• Power: 0 to 320 W
• Voltage range: 100 to 240 V
• Beam angle: Furthermore, the lighting can operate from 180° to 360°.
• Dimmable: Yes
• IP rating: IP65
• Wind resistance: In addition, the unit withstands winds up to 25 m/s.
• WiFi control: Furthermore, compatible iOS and Android devices can support control functions.
• Daisy chain: Yes
• Operating temperature: Finally, the published range extends from −30 °C to 45 °C.

320x vs 420x vs 600x

Specification	320x	420x	600x
Light output	45,000 lumens	65,000 lumens	95,000 lumens
Illuminated area at 5 lux	4,600 m²	7,650 m²	11,300 m²
Weight	33 kg	36 kg	38 kg
Mast	Manual	Manual	Manual
Power	0 to 320 W	0 to 420 W	0 to 670 W
IP rating	IP65	IP65	IP65
Wind resistance	25 m/s	25 m/s	25 m/s

Compact transport and deployment

The 320x, 420x, 600x and 320x Battery share the same compact light tower dimensions. When collapsed, each unit measures approximately 120 × 32 × 40 cm. Once deployed, the systems extend to approximately 4.4 × 2.2 × 2.2 m.

As a result, operators can transport powerful area lighting in a relatively small footprint. Furthermore, ergonomic handling and low system weight help simplify movement between vehicles, storage locations and worksites.

Technical highlights

• Product range: Baselight X Series
• Models covered: 220x, 320x, 420x, 600x and 320x Battery
• Light output: Overall, models provide up to 95,000 lumens.
• Area coverage: In addition, selected models illuminate up to 11,300 m² at 5 lux.
• Mast configurations: Tripod mounted or manual mast depending on the model.
• Battery option: Furthermore, the 320x Battery includes an integrated 936 Wh lithium battery.
• Beam angle: In addition, compatible LED fixtures support 180° to 360° lighting configurations.
• IP rating: IP65 across the listed models.
• Dimmable: Yes
• Daisy chain: Yes
• Modular construction: Finally, replaceable components support straightforward servicing and repairs.

Why choose the Baselight X Series

The Baselight X Series combines portable construction, straightforward operation and high output LED lighting. Therefore, users can select from several configurations without moving to a larger conventional lighting tower platform.

• Simple operation: Above all, the manual mast models focus on straightforward deployment and operation.
• Scalable lighting output: In addition, users can select output levels from 45,000 to 95,000 lumens depending on the requirement.
• Portable construction: As a result, the main X Series light towers weigh from only 33 to 38 kg.
• Flexible configurations: Furthermore, the range includes tripod mounted, manual mast and battery powered options.
• Wide area coverage: In addition, selected models illuminate up to 11,300 m² at 5 lux.
• Field durability: Furthermore, IP65 protection and wind resistance up to 25 m/s support demanding working environments.
• Serviceable design: Finally, modular construction allows individual damaged components to be replaced when required.

Overall, the Baselight X Series provides portable, high output area lighting for construction, infrastructure, emergency response and other demanding applications. Talk to J3Seven about selecting the right Baselight X Series configuration for your requirements.
