Heavy‑Duty Temporary Flooring and Trackway

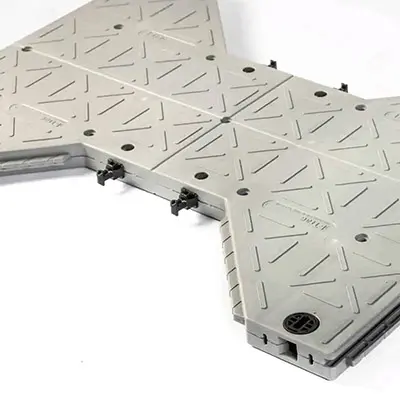

i‑Trac is a composite interlocking panel that creates a continuous, heavy‑duty roadway or pad with a small crew. The brick‑weave formation spreads load and avoids long linear weak points, while an inbuilt connection device (no special tools) speeds installation.

Why organisations choose this system

• Fast deployment: up to 40 m² per person/hour with hand‑deployable panels.
• Strong, continuous surface: brick‑weave formation and 9 attachment points per panel for accessories/edges.
• Road & static loads: up to 15,000 kg/axle (CBR ≥ 3) and 200,000 kg/m² static (ground‑dependent).
• All‑weather, non‑corroding: PPCP+UV (standard) or PPCP+UV+Anti‑Stat (aircraft grade); multi‑directional anti‑slip.
• Lean logistics: 18 panels per pallet; proven for construction, events, stadiums and airfields.

Key specifications

• Panel (L × W × T): 1,200 × 920 × 54 mm
• Coverage per panel: 0.8 m²
• Weight per panel: ≈ 15.6 kg
• Materials: PPCP+UV (standard); PPCP+UV+Anti‑Stat (aircraft grade)
• Operating temperature: −60 °C to +85 °C
• Loads: 15,000 kg/axle (CBR ≥ 3); 200,000 kg/m² static (ground‑dependent)
• Colour: Grey
• Pallet: 18 panels

Typical applications

• Temporary roadways and site access
• Compounds, laydown areas and crane access
• Stadium/arena turf protection and heavy‑duty event flooring
• Aviation stands and airfield access
