Medium‑Duty Turf‑Protection and Temporary Flooring

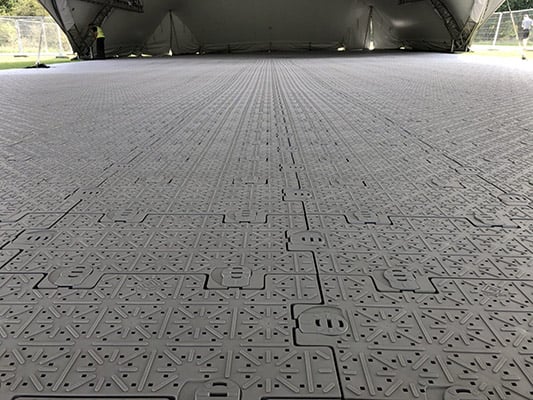

Stadia X is a ventilated, medium‑duty temporary flooring system that protects natural and hybrid turf while allowing light, air and water to reach the surface. Its interlocking design enables rapid, tool‑light installation (up to 70 m² per person per hour), creating safe, self‑draining access routes and event pads in and around venues.

Why organisations choose this system

• Vehicle‑capable: accommodates moving vehicles up to 2.5 tonnes (ground‑dependent).
• Robust static capacity: up to 80,000 kg/m² (ground‑dependent).
• Pitch‑friendly: ventilated design promotes grass health by letting light, air and water through.
• Fast deployment: “T‑peg” and integrated cam locks—no specialist tools; ~70 m² per person per hour.
• Safe & durable: multi‑directional anti‑slip; self‑draining; inert and non‑conductive; UV‑ and solvent‑resistant.

Key specifications

• Panel (tile): 287.5 × 287.5 × 30 mm; ~1.33 kg (≈ 8.19 kg/m²)
• Sheet sizes: 2.3 m × 1.15 m or 1.15 m × 1.15 m assemblies
• Max gross vehicle weight: 2,500 kg*   |   Max static load: up to 80,000 kg/m²*
• Operating temperature: −49 °C to +50 °C
• Suitable surfaces: turf, soil, sand, gravel, snow, grass

*Performance is ground‑dependent. Engineering checks recommended for critical loads.

Typical applications

• Stadiums and arenas: turf overlay, hospitality zones and back‑of‑house routes
• Temporary structures: exhibition halls, crew compounds and walkways
• Car‑parks and helipads (design‑dependent)
