Temporary Acoustic Barriers
ASP Acoustic Barriers
ASP Acoustic Barriers

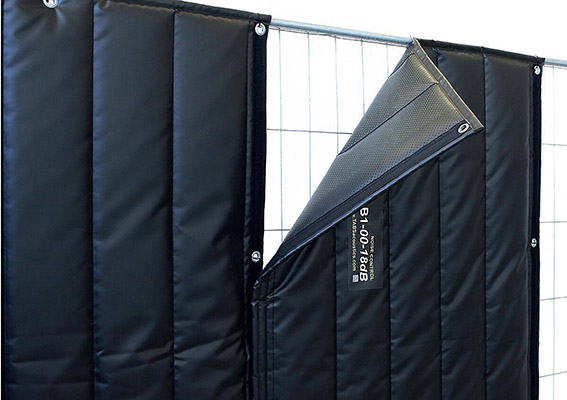

Deploy high‑performance acoustic screening quickly. ASP barriers use a patented keder joining system to maintain edge‑to‑edge absorption, avoiding sound leaks at seams. Each panel is 50 mm thick, weatherproof and re‑usable, with independent testing to UNI EN ISO 10140‑2:2021.
Why organisations choose these barriers
- Full‑panel performance: tested across the entire panel; joins sealed with patented keder edges.
- Proven construction: reinforced PVC outer with a hydrophobic polyester FR insulated core (constant 50 mm depth).
- Fire & weather: EN 13501‑1 fire classifications, waterproof outer, UV‑resistant and re‑usable.
- Versatile install: hang vertically, horizontally or pitched on temporary fencing and frames.
Models & performance (single panel)
| Model | Acoustic rating | Double‑layer rating* | Panel size (mm) | Weight |
|---|---|---|---|---|
| ASP 00 | 18 dB Rw | Up to 35 dB Rw | 2050 × 1220 × 50 | 12.02 kg |
| ASP 02 | 25 dB Rw | Up to 44 dB Rw | 2050 × 1220 × 50 | 11.10 kg |
| ASP 04 | 27 dB Rw | Up to 44 dB Rw | 2050 × 1220 × 50 | 16.11 kg |
*Double‑layer performance requires correct installation and spacing. Real‑world results depend on distance, reflection paths and frequency content.
Typical applications
- Noise‑sensitive construction and roadworks
- Concert and festival perimeters
- Temporary fencing near residences and workplaces
- Industrial plant and machinery screens
- Refurbishment in occupied buildings
