Containerised Rapid‑Deployment Barrier System
HESCO® RAID™ (Rapid In‑Theatre Deployment)
HESCO® RAID™ (Rapid In‑Theatre Deployment)

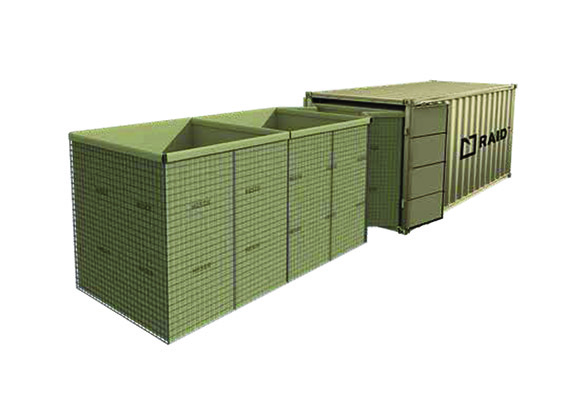

Roll out hundreds of metres of MIL™ barrier in minutes. RAID loads pre‑connected lengths of HESCO units into a modified container so you can tow out a continuous wall and fill with local material for instant protection. Containers can deploy standard MIL or recoverable MIL‑R units.
Why organisations choose this system
- Standard or recoverable: deploy conventional MIL or recoverable MIL‑R units from the same container.
- Proven construction: mesh frames with heavy‑duty non‑woven polypropylene geotextile liners.
Configurations & lengths (filled)
| Variant | Height | Width | Run length |
|---|---|---|---|
| RAID 7 / 7H | 2.21 m | 2.13 m | 237 m / 333m |
| RAID 10 | 2.21 m | 1.52 m | 224 m |
| RAID 12 | 2.13 m | 1.06 m | 321 m |
Deployment summary
- Position the modified ISO container and attach a towing vehicle.
- Tow the pre‑connected MIL units to unfold the barrier along the chosen line.
- For partial runs, remove pins to drop a cell section.
- Fill with locally available material (earth, sand, gravel or rock).
Frequently asked questions
Can RAID deploy recoverable units?
Yes. RAID containers can deploy either standard MIL units or recoverable MIL‑R units.
