Protected Observation Post
HESCO® SANGARS — GMS & EES
HESCO® SANGARS — GMS & EES

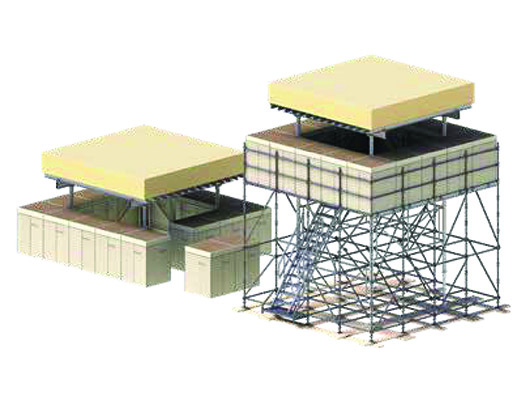

HESCO SANGARS provide blast- and ballistic-protected overwatch with full 360° visibility. Available as the Ground‑Mounted Sangar (GMS) or the Expeditionary Elevated Sangar (EES), they combine earth‑filled HESCO protective units with alloy components to create robust, modular positions that use locally available fill.
Why organisations choose this system
- Protected overwatch: geotextile‑lined, welded‑mesh units deliver ballistic and blast protection for crew and equipment.
- Two configurations: ground‑level GMS for fast emplacement, or EES to see over obstacles and perimeter fencing.
- Durable build: zinc–aluminium coated steel mesh with heavy‑duty, polypropylene geotextile.
- Modular logistics: deploy with earth, sand, gravel or crushed rock; container‑friendly for rapid shipping.
Models & external dimensions
| Model | Height | Width (Depth) | Length |
|---|---|---|---|
| GMS | 3.70 m | 5.50 m | 5.50 m |
| EES | 7.36 m | 5.50 m | 5.50 m |
Optional accessories
- Ballistic glass: protective glass (ballistic resistant properties) improving line of sight.
- Blind spot mirror: optional mirrors for blind‑spot coverage (where specified).
Frequently asked questions
What materials are used?
Mesh frames with zinc–aluminium coatings and a heavy‑duty, polypropylene geotextile liner.
