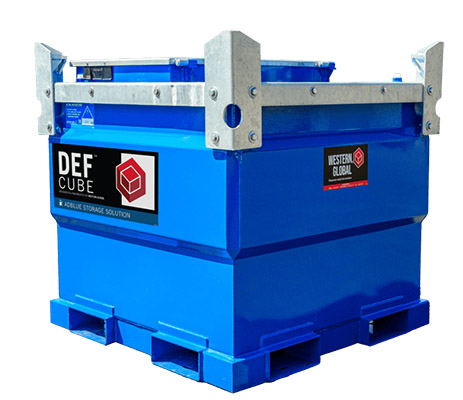

500L DEF Storage
A compact, 500 L on‑site DEF/AdBlue storage tank that protects fluid quality with a double‑walled (poly inner / steel outer) design and a lockable equipment cabinet. Four‑way fork pockets and top lifting points speed handling, while the bunded construction provides secondary containment to minimise spill risk and contamination. Ideal for refuelling Stage V/non‑road machinery, generators and fleet at remote or rotating worksites.
Why teams choose this tank
- Protects DEF quality: sealed, segregated system with double‑wall construction and secure cabinet.
- Portable & quick to deploy: four‑way fork pockets and crane lift points for fast placement.
- Built for real sites: rugged outer steel shell, purpose‑built for on‑site refuelling in mixed weather and terrain.
- Cold‑weather options: heater kit available to keep DEF within the correct temperature range in low‑temperature environments.
How it works
DEF is stored in a protected poly inner tank housed inside a steel outer tank. The lockable front cabinet holds the pump and hose set (package‑dependent) so operators can connect, dispense and stow gear without exposing the fluid to dirt or weather. The bunded (double‑walled) design provides built‑in containment during transport and use.
Key specifications
- Nominal class: 500 L (manufacturer literature refers to this size as the “500‑litre DEFCube”).
- Capacity (brim/safe fill): ≈ 514 L / 480 L.
- Dimensions (L×W×H): 1,171 × 1,171 × 1,145 mm.
- Mass (empty / full): ≈ 344 kg / 1,000 kg (fluid dependent).
- Construction: poly inner tank + steel outer tank, lockable cabinet, four‑way fork pockets.
Typical applications
- Refuelling Stage V generators and non‑road machinery on construction and resources sites.
- Fleet and plant depots needing compact, secure DEF storage near diesel tanks.
- Remote and temporary worksites where clean handling and quick redeployment matter.
