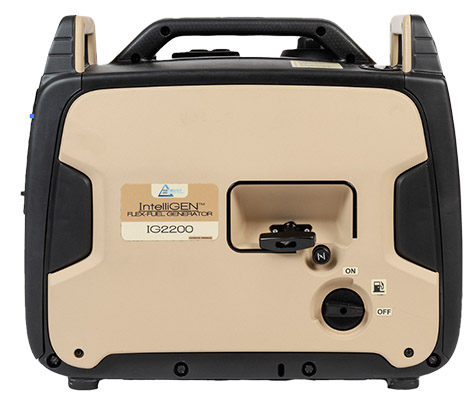

Dewey IntelliGen™ 2200 Multi‑Fuel Tactical Generator

The IntelliGEN™ 2200 is a compact, man portable multi fuel generator designed to provide reliable field power across a wide range of operating environments. Weighing 27.7 kg, the unit delivers up to 2.2 kW peak output at sea level and supports multiple fuel types, including JP 8, F 24, F 34 NATO fuel, petrol, kerosene, AVGAS, Jet A, Jet A1, JP 5 and JP 4.

Designed for flexible deployment, the IntelliGEN™ 2200 can operate as a stand alone generator or integrate with Trinity™ Systems. It provides both AC and DC outputs, supports parallel operation with a second unit, and automatically reduces engine speed when electrical demand is low to help reduce fuel use and noise.

Key benefits

• Multi fuel capability: Supports JP 8, F 24, F 34 NATO fuel, petrol, isopropanol, kerosene or paraffin, AVGAS, Jet A, Jet A1, JP 5 and JP 4. Propane operation is also available with the required UPAK.
• Compact and man portable: The generator weighs approximately 27.7 kg and measures 557 × 300 × 470 mm, supporting movement and deployment in the field.
• Strong power output: Delivers up to 2.2 kW peak output at sea level, with 1.8 kW nominal output on petrol.
• Military fuel compatibility: JP 8 and F 24 operation is certified to 1.5 kW nominal output at sea level.
• Parallel capability: Twin Tech allows two IntelliGEN™ 2200 units to operate together and provide approximately 3 kW and 30 A of rated power.
• AC and DC outputs: Provides multiple AC outlets together with a 12 V DC output for compatible equipment and charging requirements.
• Low acoustic signature: The generator is designed for quiet operation with a small noise signature.
• Immediate startup capability: Provides power immediately after startup without a warm up delay.
• Automatic load response: Auto turn down reduces engine speed when electrical demand is low.
• High elevation operation: The generator is tunable for operation from sea level to approximately 3,048 metres.
• Low maintenance design: Simple controls and a manual recoil start support straightforward field operation and maintenance.

Typical applications

• Field power for communications equipment, radios and electronic systems.
• Portable power for command posts, temporary operating locations and field camps.
• Battery charging and low voltage equipment through the integrated DC output.
• Power for tools, lighting and other deployable equipment.
• Stand alone field generation where permanent electrical infrastructure is unavailable.
• Integration with compatible Trinity™ Systems and tactical hybrid power configurations.
• Higher demand applications using two generators through the Twin Tech parallel function.

Multi fuel operation

The IntelliGEN™ 2200 provides flexibility where fuel availability may vary between locations and deployments. Supported fuels include:

• JP 8 / F 24
• F 34 NATO fuel
• Petrol
• Isopropanol
• Kerosene / paraffin
• AVGAS
• Jet A / Jet A1
• JP 5
• JP 4
• Propane with the required UPAK

The generator can also operate on diesel in an emergency. However, Dewey specifies that operators must change the engine oil every four hours or at refuelling, whichever occurs first, when using diesel.

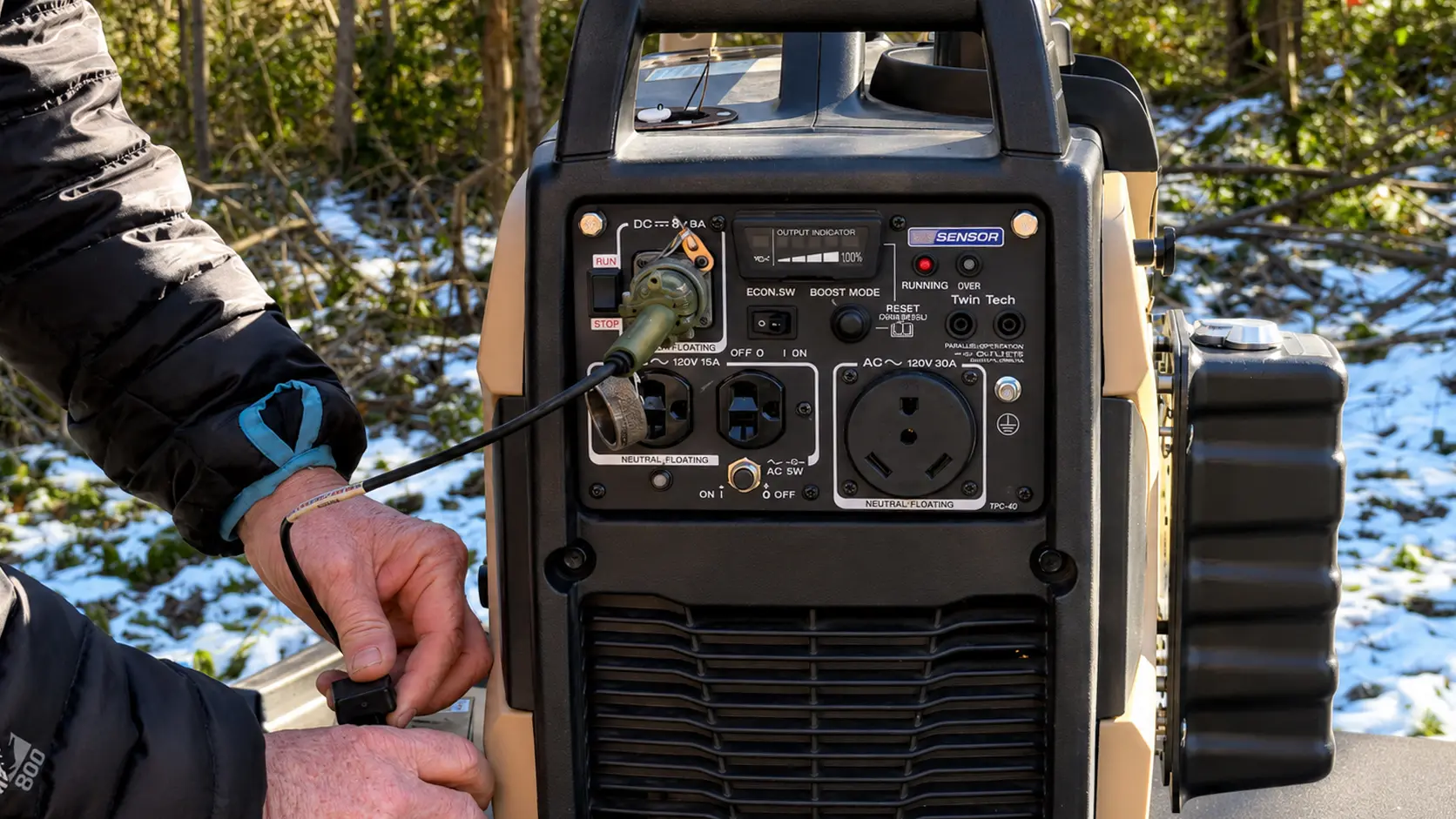

Power output

The IntelliGEN™ 2200 provides both AC and DC power for field equipment. In addition, the system supports several output options for different operational requirements.

• Maximum peak output: 2.2 kW at sea level
• Petrol nominal output: 1.8 kW at sea level
• JP 8 / F 24 nominal output: Certified to 1.5 kW at sea level
• Petrol nominal voltage: 120 VAC, 60 Hz and 12 VDC
• JP 8 / F 24 nominal voltage: 120 VAC, 60 Hz and 12 VDC
• AC outlets: Two 15 A outlets and one 30 A outlet
• DC outlet: One 12 V, 3 A outlet

Parallel power

For applications requiring greater electrical capacity, the Twin Tech parallel function allows two IntelliGEN™ 2200 generators to operate together. When connected, the two units can provide approximately 3 kW and 30 A of rated power.

As a result, operators can deploy a single compact generator for smaller loads or combine two units when greater capacity is required.

Operating performance

• Petrol operating temperature: −20 °C to 50 °C
• JP 8 operating temperature: −10 °C to 50 °C
• Storage temperature: −40 °C to 80 °C
• Operating elevation: Sea level to 3,048 m
• Internal fuel tank: 4.5 L
• Available colours: Tan or green
• Start system: Manual recoil start

Physical specifications

• Dry weight: 27.7 kg
• Dimensions: 557 × 300 × 470 mm
• Form factor: Lightweight, man portable
• Part number: INI IG2200

Low signature and efficient operation

The IntelliGEN™ 2200 combines a compact physical footprint with a small acoustic signature for field use. In addition, its automatic turn down function reduces engine speed when electrical demand falls.

This load responsive operation supports more efficient generator use while also helping reduce unnecessary engine noise during periods of lower electrical demand.

Trinity™ System compatibility

The generator can operate as a stand alone power source or connect with compatible Trinity™ Systems. Therefore, the IntelliGEN™ 2200 can support both conventional portable generation and integrated tactical hybrid power configurations.

What is included

• 1 × IntelliGEN™ 2200 Flex Fuel Generator v1.0
• 1 × Initial oil fill bottle
• 1 × 3.81 m extended exhaust pipe with clamp
• 1 × 2 kW maintenance kit
• 1 × Operator manual
• 2 × Cold start canisters
• 2 × 0.95 L 15W 40 small engine oil
• 1 × Quick reference card

Cold start canisters are removed for air shipment.

Technical highlights

• Product: IntelliGEN™ 2200 Multi Fuel Generator
• Part number: INI IG2200
• Maximum peak output: 2.2 kW
• Petrol nominal output: 1.8 kW
• JP 8 / F 24 nominal output: Certified to 1.5 kW
• AC output: 120 VAC, 60 Hz
• DC output: 12 VDC
• Parallel capability: Approximately 3 kW / 30 A with two units
• Dry weight: 27.7 kg
• Dimensions: 557 × 300 × 470 mm
• Fuel tank: 4.5 L
• Operating elevation: Sea level to 3,048 m
• Start system: Manual recoil
• Colours: Tan or green
• Warranty: 2,000 hours or 1 year limited warranty

Why choose the IntelliGEN™ 2200

• Flexible fuel options: Supports a wide range of military, aviation and conventional fuels.
• Portable field power: Combines useful electrical output with a compact 27.7 kg configuration.
• Scalable output: Operators can use one generator independently or connect two units through Twin Tech when greater capacity is required.
• Broad environmental capability: Supports operation across wide temperature and elevation ranges.
• Hybrid system compatibility: Works as a stand alone generator or as part of compatible Trinity™ power systems.
• Straightforward operation: Manual recoil starting, immediate power availability and automatic load response support practical field use.

The IntelliGEN™ 2200 provides compact, flexible multi fuel power for demanding field operations. Talk to J3Seven about the IntelliGEN™ 2200 Multi Fuel Generator for your deployable power requirements.
