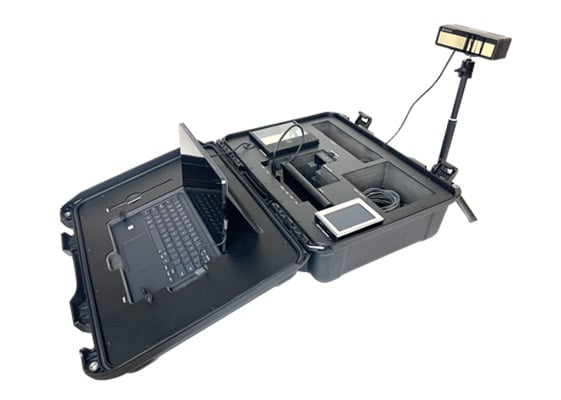

Javelin Jump Kit Biometric Enrolment Station

The Javelin Jump Kit is a compact, self-contained biometric enrolment and identification station for fixed and semi-fixed sites, ideal for high-throughput registration, access control, and verified ID checks. The station supports dual‑iris, four‑finger and document capture and runs Ares Mobile Biometrics Applications for near‑real‑time responses.

Why Teams Choose Jump Kit

• High‑throughput capture for checkpoints.
• Dual‑iris auto‑capture and 4‑finger slap capture in one station.
• Ares Mobile Biometrics Application workflow with central management via Ares Gateway.
• IP‑67 case, local or external power; global power accessories included.

What’s in the Case

Local power adaptor; 26,900 mAh external battery pack; international travel adaptor; mini‑tripod. Optional peripherals: ID badge printer, document scanner/authentication, MRZ swipe, NFC/RFID reader, voice collection.

Use Cases

• Base entry/visitor centres and forward operating checkpoints
• Humanitarian enrolment and credential issuance
• Task force ID/booking support, with FBI approvals noted for mobile ID and booking.

Key Specifications

• System mass: < 9 kg (with case)
• Case dimensions: 48.3 cm × 39.4 cm × 19.1 cm
• Comms: USB‑C; local power or external battery
• Ruggedness: Case IP‑67
• Ares Mobile Biometrics Application: Android‑based; near‑real‑time transactions; on‑board matching; Wi‑Fi/cellular submissions; centrally managed via Ares Gateway.

Sensor Details

• Iris sensor: IAP 40, dual‑iris auto‑capture; KIND‑1 grayscale output; IR illumination for day/night.
• Fingerprint sensor: FAP 50, 4‑finger simultaneous; 114 mm × 83 mm × 19 mm, 191 g; Thin-Film Transistor sensor; 81 mm × 51 mm sensing area; RAW/WSQ/BMP/JPEG2000/PNG; –10 °C to +55 °C; IP‑65.
• Document scanner: 80 g; 137 mm × 129.5 mm × 94 mm; ID‑1/ID‑2/ID‑3 & other sizes ≤ max; CMOS RGB 5 MP; scan area 79 mm × 127 mm.

Interoperability & Software

Ares Mobile Biometrics Application for enrolment, validation, on‑device matching and submissions; Ares Gateway for centralised management, reporting and auditing.

FAQs

Does Jump Kit operate offline?

Yes, collections can be queued offline and auto‑transmitted on reconnection (Ares MBA).

Is it on FBI lists?

The Ares MBA ecosystem is FBI‑certified/approved for mobile ID/booking/live scan.

Badge printing?

Supported as an optional peripheral.

Compliance & Security

Observe identity policy and privacy controls; FBI/EBTS requirements apply where relevant.
