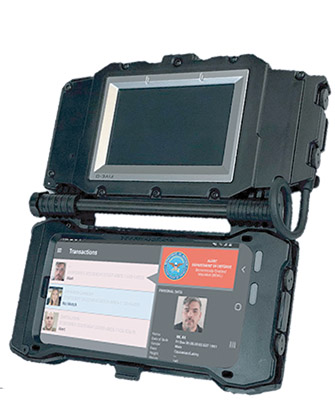

JavelinXL Biometric Platform

JavelinXL is a ruggedised clamshell mobile collection platform with 4‑finger FAP 50 fingerprint capture, dual‑iris capture and smartphone camera for face, running Ares MBA for a consistent, secure workflow. The clamshell protects screens and sensors, adds an internal battery for extended use and supports Samsung Knox™ Mobile Device Management for fleet‑level security.

Why Teams Choose JavelinXL

• 4‑finger and dual‑iris capture in a compact clamshell.
• Ruggedised for Defence and policing; IP‑67 module and case; IP‑65 finger sensor.
• Internal battery + phone battery for extended missions.
• Modular for easy phone removal; Samsung Knox™ device management.

What’s in the Kit

Device and case; plug‑in fast charger and data cable; ruggedised kit case; international charging adaptor.

Key Specifications

• Mass: 1.1 kg (with phone)
• Dimensions: 19.4 cm × 11.4 cm × 7.6 cm
• Comms: Wi‑Fi, cellular, USB‑C data
• Ingress: IP‑67 (module + phone case)
• Iris: IAP 30, dual auto‑capture, ~15 cm working distance; 640 × 480 grayscale (KIND‑1); IR illumination.
• Fingerprint: FAP 50; 4/4/2 simultaneous capture; TFT sensor; 8 cm × 5 cm sensing area; RAW/WSQ/BMP/JPEG2000/PNG; –10 °C to +55 °C; 30–80 % RH (40 °C, non‑condensing); IP‑65.

Interoperability & Software

Runs Ares MBA; submissions over Wi‑Fi/cellular; centrally administered via Ares Gateway with analytics and reporting.

Use Cases

• Mobile enrolment where iris + multi‑finger capture is required
• Field booking and rapid watchlist checks
• Humanitarian registration with document scanning (with accessories)

FAQs

Can JavelinXL be vehicle‑mounted?

The Javelin family supports mounting options; check your specific cradle requirements.

Mobile Device Management?

Samsung Knox™ Mobile Device Management support is noted for device management.

Is Ares FBI‑certified?

Parsons describes Ares as FBI‑certified within the broader Ares suite.

Compliance & Security

Observe EBTS and privacy obligations; export/use restrictions may apply.
