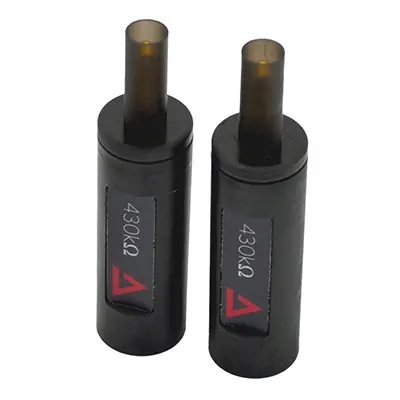

High‑Value Resistor Stick

The 430KΩ Resistor Stick is a simple, field‑ready accessory that extends the range of your Resistance Duplication Tool (RDT). Each precision 430kΩ stick is designed to be used in series with the RDT, allowing technicians to add high‑value resistance in clean, repeatable steps without rebuilding complex resistor networks on the bench.

Sold as matched pairs, the 430KΩ Resistor Stick makes it easy to simulate and substitute higher resistance values when diagnosing, training on, or replicating sensitive electronic circuits in EOD, law enforcement and defence applications.

Key benefits

• Extends the RDT’s range: Each stick adds 430kΩ of substitution resistance when used in series with the RDT, dramatically increasing the range you can simulate.
• Use one or many: Multiple sticks can be placed in series at the same time, providing flexible, stepwise increases for higher total resistance values as required.
• Precision you can trust: High‑accuracy resistors (1 tolerance) support repeatable, reliable substitution when you need to mirror a target circuit’s behaviour closely.
• Fast, plug‑in accessory: The compact stick format connects into the RDT substitution chain in seconds, with no extra calculations or complex wiring.
• Keeps test setups tidy: Avoids loose, improvised resistor ladders on the bench or in the field, helping maintain clean, auditable diagnostic and training rigs.
• Rugged for field use: Robust construction makes the sticks suitable for carried toolkits, EOD packs and classroom sets without excessive care or packaging.

Typical applications

• Extending the substitution range of the Resistance Duplication Tool (RDT) when duplicating higher resistance values in target systems.
• Electronic diagnostics on firing circuits, triggers and sensor loops where higher resistance ranges must be simulated safely.
• Training in resistance substitution and circuit replication for EOD, electronics and specialist technical operators.
• Any scenario where precise, repeatable high‑value resistance steps are required as part of an RDT‑based test chain.

Why choose the 430KΩ Resistor Stick

• Optimised for high‑risk diagnostics: Ideal for EOD and technical teams who rely on the RDT to replicate sensitive or safety‑critical electronics.
• Part of a complete suite: Works alongside the RDT, Current Shift Resistor (CSR), 90MΩ Resistor Stick, Voltage Duplication Tool (VDT) and other tools.
• Supports better training outcomes: Enables instructors to demonstrate a wider range of resistance behaviours without improvised component stacks.
• Local advice and support: J3Seven can help integrate diagnostic tools into your SOPs, training programs and wider EOD/engineering capability.

Expand the capability of your Resistance Duplication Tool and simulate higher resistance values with confidence. Talk to J3Seven about the 430KΩ Resistor Stick today.
