Infrared LightShape® 8 Hour (10 Pack)

Please contact J3Seven for current availability, lead times and pricing for Cyalume LightShape® (Infrared).

Mark routes, personnel, vehicles and key locations without visible light. The Cyalume LightShape® Infrared (IR) is a circular, self-adhesive marker designed for covert identification and tactical wayfinding when you need markings that are detectable with Night Vision Goggles (NVG), but not obvious to the naked eye.

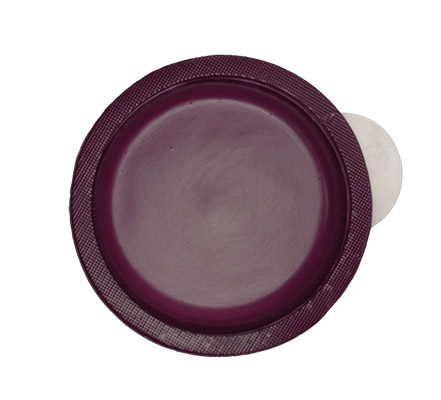

Each IR LightShape® marker is a 3″ circle with a durable adhesive backing, providing instant IR illumination for up to 8 hours in optimal conditions. The manufacturer describes it as waterproof, non-toxic and non-flammable, with a rugged LDPE outer body that is phthalate-free.

Why Teams Choose LightShape® IR

• Covert marking – emits infrared light intended to be viewed with Night Vision Goggles (NVG).
• Up to 8 hours – practical duration for extended tasks and overnight marking (optimal conditions).
• Peel-and-stick deployment – self-adhesive backing for fast placement on suitable surfaces.
• Rugged and weather-ready – manufacturer describes it as waterproof, non-toxic and non-flammable.
• Low-profile, lightweight – easy to carry in kits and pouches without adding bulk.

Typical Uses

• Covert route and trail marking for NVG navigation
• Evacuation procedures and pathway marking (NVG-compatible)
• Room clearing / building identification (NVG-compatible)
• IFF (Identification Friend or Foe) style marking and convoy/vehicle identification (NVG-compatible)
• Target/designation point marking where procedures allow
• Medical triage marking when operating under NVG

How to Use

1. Activate: activate the marker to mix the internal solutions (manufacturer guidance commonly describes a bend/snap/press action).
2. Shake: shake to mix thoroughly and reach optimum output after a few minutes.
3. Apply: peel the paper backing and press firmly onto a clean, smooth surface for best adhesion.

Key Specs

• NSN: 6260-01-396-1705
• Output: infrared (for use with NVG)
• Duration: up to 8 hours (optimal conditions)
• Size: 3″  diameter
• Thickness: 13 mm
• Weight: 14 g (single marker, non-wrapped)
• Pack size: 10 pack (PF)
• Material notes: LDPE outer body; phthalate-free (manufacturer stated)
• Shelf life: manufacturer literature indicates shelf life varies by reference; IR LightShape® is commonly listed as 3 years (check the date on the foil/case for your stock rotation)

Important Notes (Infrared / NVG Use)

• NVG required: infrared chemiluminescent markers are intended to be visible using Night Vision Goggles (NVG), not as a standard visible light source.
• Detection distance varies: NVG acquisition distance can vary significantly depending on the NVG model and conditions.

Restrictions & Compliance

Infrared (IR) products may be restricted and are often supplied only to authorised end users. Manufacturer literature notes IR products can be restricted to authorities and may require end-user documentation prior to supply.

Frequently Asked Questions

Is this visible without night vision?

LightShape® IR is designed for covert marking. It emits infrared light intended to be viewed with NVG rather than as a visible marker.

How long does it last?

The 9-17050PF IR LightShape® is listed as providing up to 8 hours of IR illumination in optimal conditions.

What surfaces will it stick to?

It’s designed as an adhesive marker. For best results, apply to reasonably clean, dry, smooth surfaces and press firmly to bond the adhesive.
