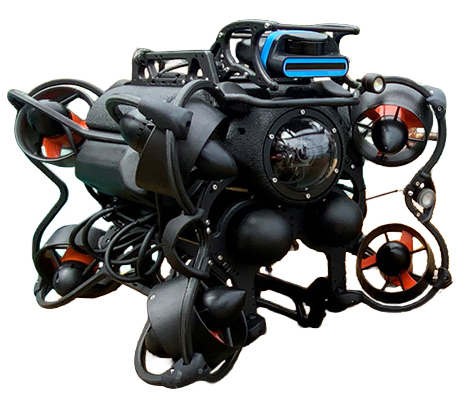

High-Power Underwater Remote Operated Vehicle

More power, more payload, more mission flexibility. The SRV-8X is a larger, higher-output remotely operated vehicle (ROV) built for demanding underwater operations in stronger currents and deeper water, without sacrificing portability or ease of use. It’s designed for professional users who need reliable manoeuvrability, expanded accessory integration, and repeatable performance across inspection, search, recovery, and intervention tasks.

Powered by eight large brushless thrusters, the SRV-8X delivers intuitive piloting with integrated sensor and accessory workflows.

Why teams choose the SRV-8X

• Built for strong currents: higher power and payload capability for tougher offshore and high-current work.
• Deepwater capable: depth rated to 305 m, with a 500 m option available.
• High-visibility imaging: 1080p camera (4K optional) plus 4 lights for a total of 6,000 lumens with dimming control.
• Mission endurance: dual hot-swappable battery modules with 6–8 hours runtime (usage dependent).
• Accessory-ready platform: supports common professional add-ons such as imaging sonar, USBL, DVL, and NDT tools.
• Intuitive, user-friendly ROV software.

Performance & capability

• Thrusters: 8 × large brushless DC thrusters
• Depth rating: 305 m (500 m option available)
• Camera: 1080p (4K optional)
• Camera tilt range: 140°
• Lighting: 4 × lights at 1,500 lumens each (6,000 lumens total), with dimming control
• Onboard sensors: depth, temperature, turns counter, heading, humidity, pressure
• Battery source: dual hot-swappable battery modules
• Battery life: 6–8 hours (dependent upon usage)
• Tether options: Copper tether: 4.5 mm diameter; 250 m length, Fibre optic tether: 4.3 mm diameter; up to 3 km length

Typical accessories & mission add-ons

• Navigation and Surveillance: multi-beam imaging sonar, USBL Positioning, DVEL (doppler velocity log), acoustic tracking system
• Manipulator & recovery tools: 2-jaw grabber, 3-jaw grabber, cutter, sediment sampler, rotating Alpha Arm
• Non-destructive testing (NDT): CP Probe, UT Probe, HD auxiliary camera, 3D imaging sonar

Key specifications

• Dimensions (L × W × H): 64 cm × 53 cm × 51 cm
• Weight (in air): 25 kg

Frequently asked questions

What’s the difference between SRV-8 and SRV-8X?

The SRV-8X is positioned as the higher-power platform for stronger currents, increased payload capability, and more demanding/deeper missions—while keeping the same operator-friendly approach.

How deep can the SRV-8X operate?

The system is listed at 305 m depth rating, with a 500 m option available.

How long can it run for?

Battery life is listed as 6–8 hours (dependent upon usage) using dual hot-swappable battery modules.

Configure a high-power ROV package for your operational environment. Contact J3Seven to request a quote for the SRV-8X and the accessory bundle that matches your SOPs and mission profile.
