Automated Bio-Detection Sensor

Fully automated bio-detection sensor: When only the best will do!

The fully automated bio-detection sensor is state-of-the-art and offers unparalleled capabilities in continuous air monitoring for biological threats. This fully automated system can operate 24/7, providing rapid detection and alarms in less than 60 seconds when a biological threat is present.

Comprehensive Threat Detection

Our system is designed to detect and collect aerosolised agents from all four biological threats: spores, viruses, cellular agents, and protein toxins. This comprehensive coverage ensures the system can effectively monitor for potential biological hazards.

Automated Sampling and Alarming

J3Seven’s bio-detection sensor can be configured to automatically collect aerosol samples when triggered by an alarm or at set time intervals. This feature allows for continuous monitoring and the ability to respond quickly to any detected threats.

Proven Performance and Reliability

Get a product widely used worldwide for continuous bio-threat monitoring and detection, with a reputation for low false alarm rates. Its robust design and advanced technology make it a trusted solution for organisations and agencies responsible for safeguarding public health and safety.

Affordable Customer Benefits

Detect and collect a biological threat sample while communicating data to a central command post.

• Detects airborne spores, vegetative, viral, and toxin organisms.
• Provides real-time warning within seconds.
• Operates autonomously 24/7 with no consumables.
• Ruggedised for outdoor use in all weather conditions.

Indoor / Outdoor Deployment Setting

Fixed Location, Continuous Monitoring

• Building / Facility Protection
• Mass transit - Airports, subways
• Critical Infrastructure
• High-profile public sites

Portable Short-term, Detection Response Missions

• Event Monitoring
• Arenas, stadiums, convention centres
• Vehicle and UAV mountable applications

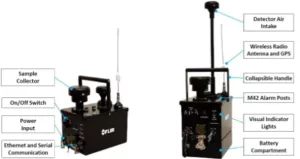

Bio-Detection Sensor Hardware Overview

Importantly, units are fully customised to meet your individual needs. However, here are some optional add-ons and accessories.

Optional Add-Ons:

• Sample Collector

1. 1. DFU (Dry Sampling)
   2. C100 (Wet and Dry Sampling)

• Battery Power
• Wireless / GPS

Optional Accessories:

• Communication Software
• Aerosol Confidence Checker
• Pelican Transport Case
• Maintenance Tool Kit
• Extra Air Inlet Extender Stacks

Aerosol Sample Collection

Aerosol Samplers are designed to collect a physical sample of airborne particles that can be archived and used for bio-identification and confirmation. Particles impact onto a collection surface. Particles are then extracted into a liquid to be analysed by common bio-identification equipment such as PCR devices or Hand-Held Assay test strips. Aerosol collection is important because the Fido B2 only detects the presence of biological material – it does not identify the specific organism. A sample of the material needs to be collected for subsequent identification.

Two collector options are available with the Fido B2 - IBAC:

1. DFU - part number: 4000-COLLECTOR-01
2. C100 - part number: 4000-COLLECTOR-02

DFU Collector - Dry Sampling

DFU = Dry Filter Unit

A DFU Filter is placed on top of the rotating fan. The collector acts as a vacuum to impact particles onto the filter surface. Following sampling, the filter disk is retrieved and placed into a conical vial with liquid buffer for particle extraction.

Advantages compared to C100 Collector:

• 75% smaller size of collection stack
• Consumables are cheaper
• No cleaning steps required
• Can operate in freezing environments

C100 Collector - Wet Sampling

Wet sampling is based on rotating impactor technology

The rotating impactor is a disk with vanes which is rotated at high speed, both entraining air into the system and impacting particles onto the surface. Following sampling, the rotating disk is manually rinsed with buffer to extract the collected particles from the surface into a small liquid volume (~ 6.0 mL in a sample vial).

Advantages compared to DFU Collector:

• Allows for both Wet and Dry sampling methods
• 50% higher air flow rate
• Wet sampling eliminates one less particle extraction step

Sample Collector: Wet vs. Dry Option



Comparison	Wet Sampling (C100)	Dry Sampling (DFU and C100)
When to use?	If you require a liquid sample without doing additional extraction steps	If you have an existing process in place for extracting particles from a filter If you require to collect samples in freezing temperatures If you want to avoid C100 cleaning between samples
Particle Collection	Particles impact onto rotating surface inside collector	Particles impact onto removable filter
Sample Extraction	Manually performed at the collector unit. Involves pouring liquid into collector, starting a rinse cycle, and capturing liquid into a sample vial.	Can be performed away from collector unit. Dry filter is inserted into a sample vial with buffer liquid.
Cost per sample	~$10 if using C100 wet sampling kit	~ $1.50 if using stock buffer and lab sample extractor ~ $12.50 if using C100 dry sampling kit
Cleaning	At least one cleaning step is involved after each collection to minimise cross-contamination between samples	Cleaning is not necessary – a new filter is replaced for each sample
Temperature Limitations	Lower limit of 0°C Liquid sampling will not work in freezing temperatures	No temperature limitation Filter can be removed from collector to allow liquid extraction in a controlled environment



Global Deployment and Accolades

The IBAC 2 has been deployed in various settings, including military installations, government facilities, and critical infrastructure, demonstrating its versatility and effectiveness in real-world applications. The system has earned recognition and accolades from industry experts and regulatory bodies for its innovative approach to biological threat detection.

Frequently Asked Questions

What types of biological threats can the IBAC 2 detect?

The IBAC 2 is capable of detecting and collecting aerosolised agents from all four classes of biological threats: spores, viruses, cellular agents, and protein toxins.

How quickly does the IBAC 2 provide an alarm when a biological threat is detected?

The IBAC 2 can alarm in less than 60 seconds when a biological threat is present.

Can the IBAC 2 be configured for automated sampling and monitoring?

Yes, the IBAC 2 can be configured to automatically collect aerosol samples when triggered by an alarm or at set time intervals.
