The Ultrasonic Analysis Tool (USAT)

The Ultrasonic Analysis Tool (USAT) is an advanced device designed for detecting, analysing, and producing ultrasonic signals, essential for desensitising volumetric ultrasonic sensors. This tool is crucial for professionals in the defence, law enforcement, emergency services, and key industrial sectors. Discover the key features and benefits of this state-of-the-art ultrasonic analysis tool below.

Key Features of the Ultrasonic Analysis Tool (USAT)

Detection and Analysis

The USAT can detect, analyse, and produce ultrasonic signals, allowing users to desensitise volumetric ultrasonic sensors effectively.

Adjustable Probe Heads

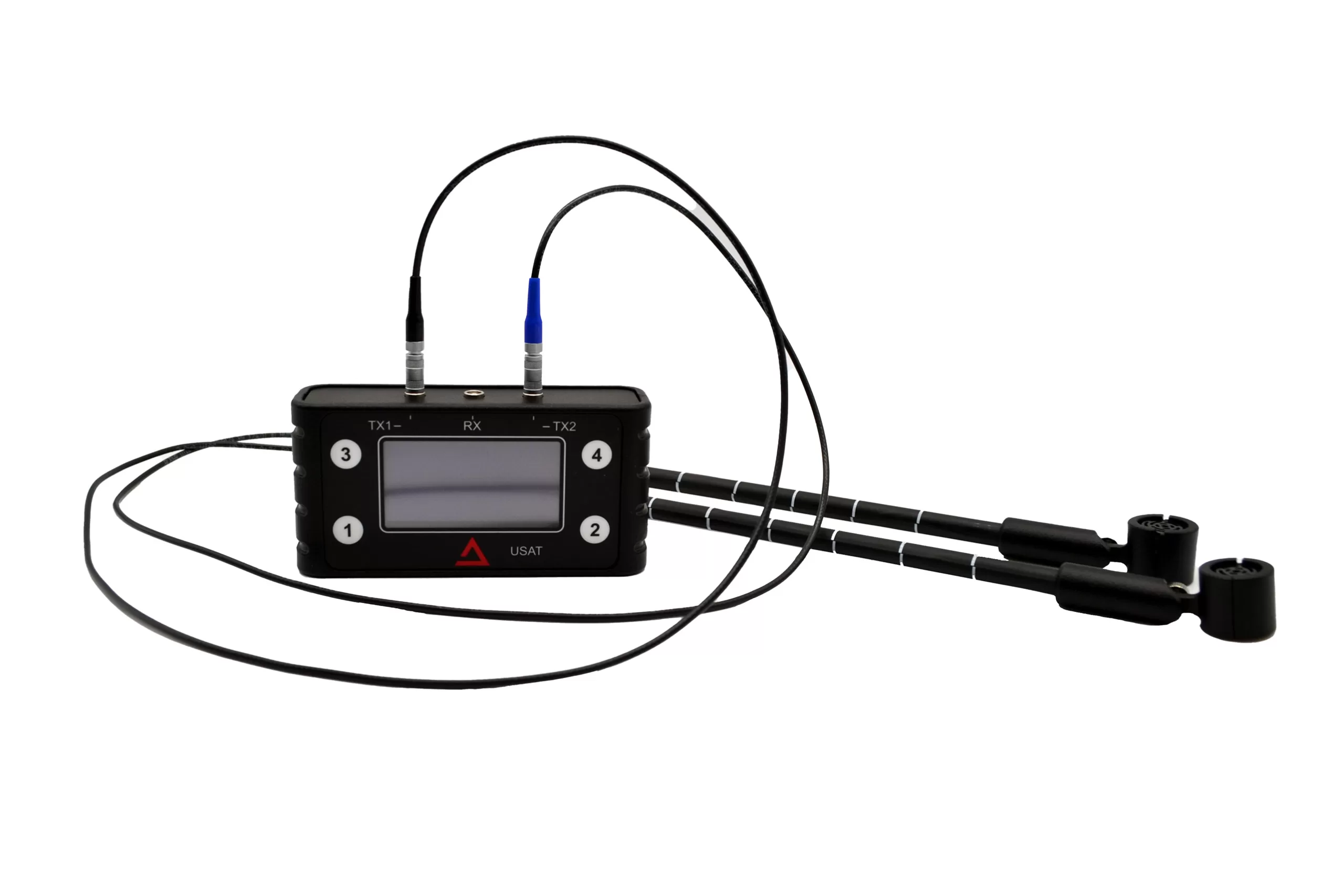

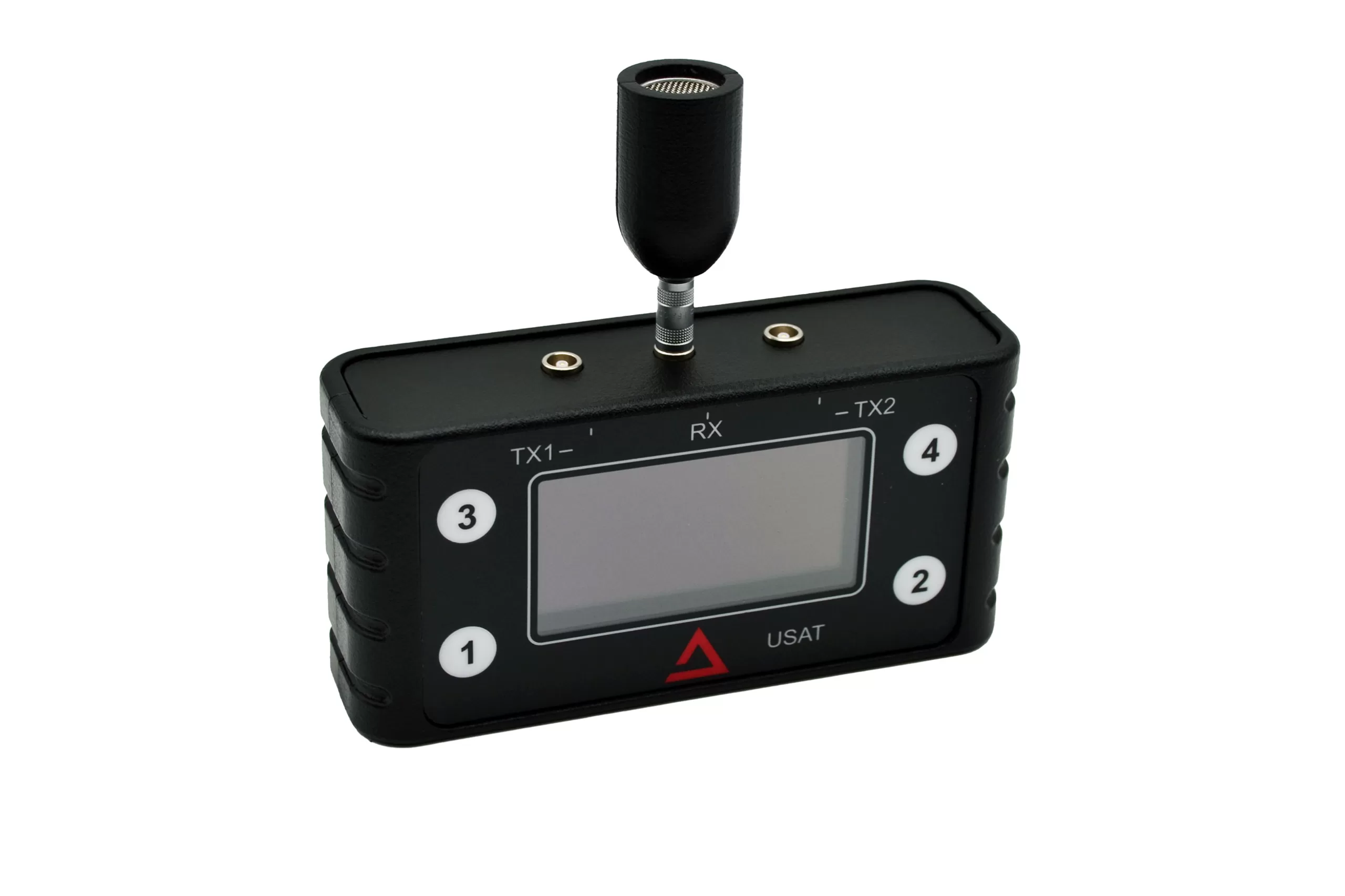

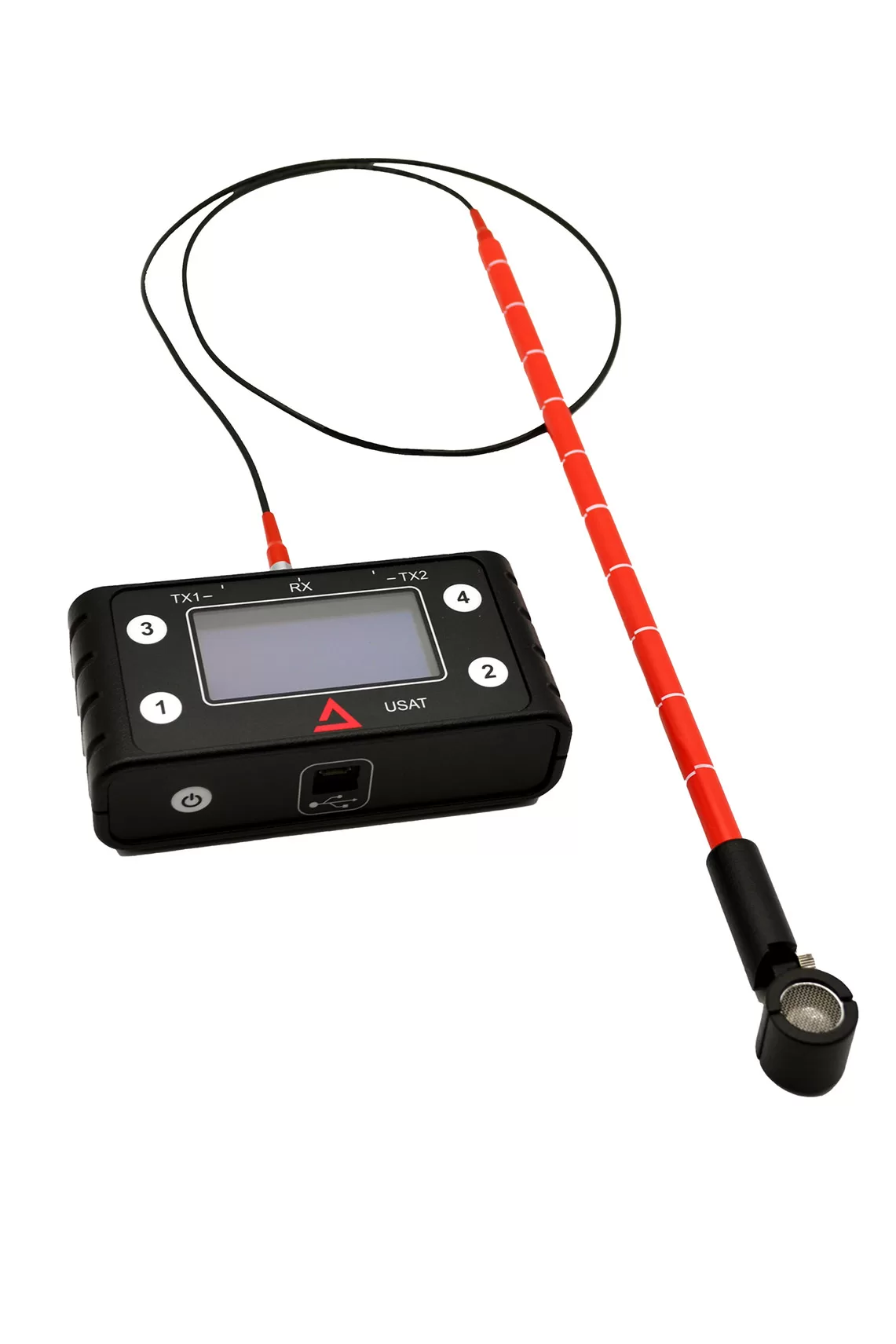

It includes three adjustable probe heads (1xRx, 2xTx) for precise positioning and an additional search probe for initial detection, ensuring accuracy and reliability.

Visual Signal Strength Indication

Features visual indicators to show the strength of detected ultrasonic signals, aiding in precise analysis and adjustments.

Stealth Deployment

The USAT can be deployed and removed from a target system without detection, making it ideal for covert operations.

User-Friendly Interface

A low-profile, four-button user interface simplifies operation, ensuring ease of use even in demanding conditions.

Ultrasonic Analysis Tool (USAT) Equipment Summary

  • Dimensions: 112mm x 54mm x 27mm
  • Operational Temperature Range: -10⁰C to 40⁰C
  • Enclosure: Ruggedised PA12
  • Connectors: Insulated Lemo connectors to prevent unintended connections
  • Cable Options: Ultra-flexible silicone or hardwearing PVC
  • Battery Status: Displayed as a percentage during use.
  • Compliance: All PCBs and soldering adhere to IPC-3 standards (aerospace, military, and medical applications)
  • Calibration and Testing: Undergoes detailed calibration and testing with individual test records available upon request.

Applications and Benefits of the Ultrasonic Analysis Tool (USAT)

Military and Defence
The USAT is designed to meet the stringent requirements of military applications. Its robust construction, reliable performance, and stealth capabilities make it ideal for defence operations.

Technical and Engineering
Precision and reliability are paramount in technical fields. The USAT’s advanced features ensure accurate ultrasonic signal detection and analysis, making it a valuable tool for engineers and technicians.

Emergency Services
Quick and reliable ultrasonic analysis is crucial in emergencies. The USAT’s ease of use and minimal preparation time ensure that emergency responders can deploy it swiftly and effectively.


What makes the USAT different from other ultrasonic analysis tools?

The USAT features detection, analysis, production capabilities, adjustable probe heads, and visual signal strength indication, setting it apart from other tools. These features ensure reliable performance, ease of use, and versatility in demanding environments.

Can the USAT be customised for specific needs?

Yes, the USAT offers a choice of ultra-flexible silicone or hardwearing PVC cables and adjustable probe heads, ensuring they meet the unique needs of different applications.

How does the USAT ensure safety and reliability during use?

The USAT includes insulated Lemo connectors and a ruggedised PA12 enclosure and adheres to IPC-3 standards for aerospace, military, and medical applications, providing excellent durability and safety.
